Equivalent Capacitance & Capacitor Networks questions with solutions
Practice Capacitor for JEE Main, JEE Advanced, NEET, and Classes 11–12. Attempt each question, then open it for the full solution.
Showing 1–10 of 41 questions
- NumericmediumCapacitor

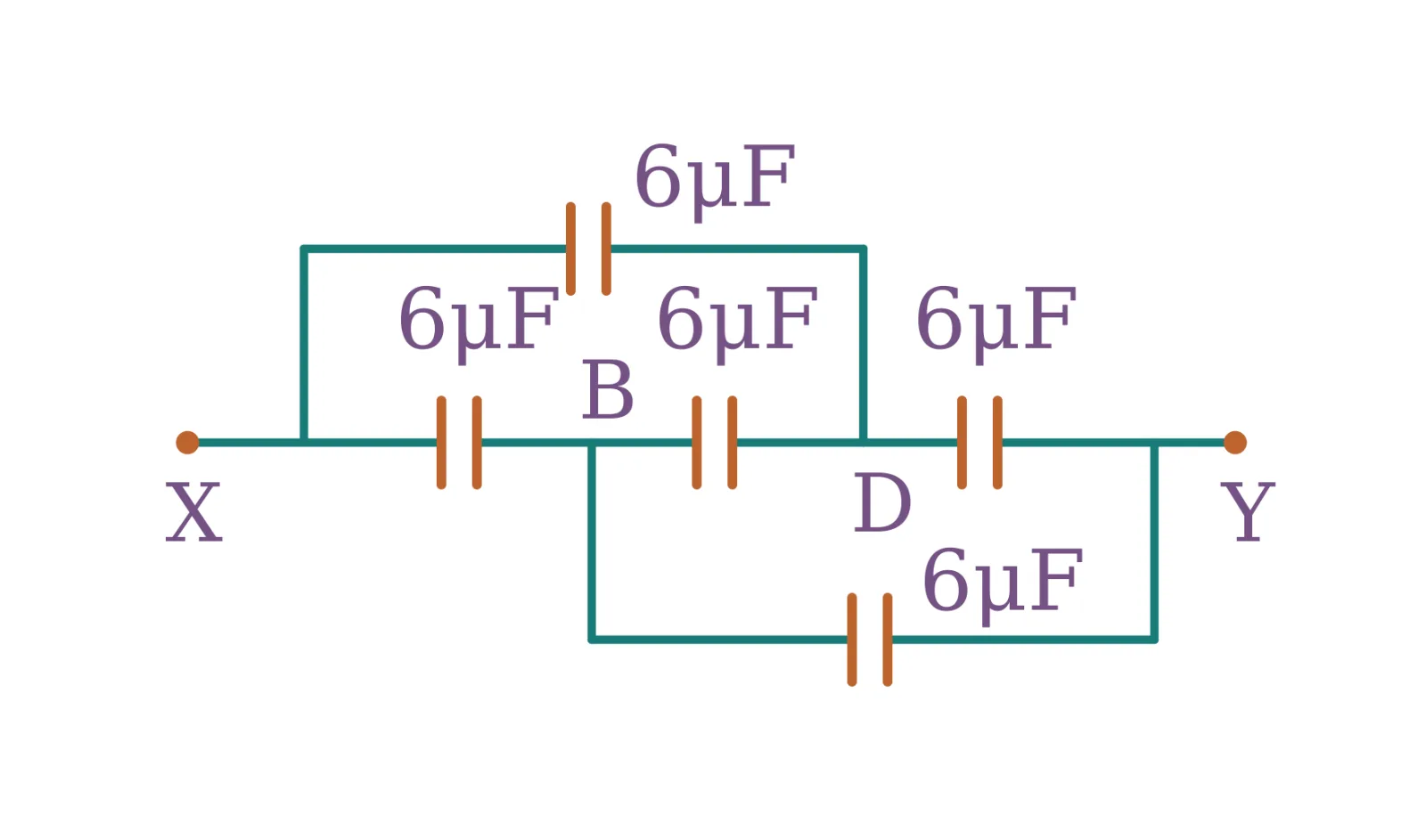

Find the effective capacitance between X and Y in the shown network of 6 μF capacitors, in μF.
JEE Advanced
Open question & full solution → - MCQeasyCapacitor
The equivalent capacitance of the combination shown is:
Options
JEE Mains10 April 2023Shift 1Morning Shift
Open question & full solution → - NumericmediumCapacitor
Two conducting objects carrying charges +Q and -Q are placed on the x-axis at x = 0 and x = 1 respectively. The electric field on the x-axis is E(x) = 3Q(x² + 4/3). If the capacitance of this configuration is C, find 1/C.
JEE Advanced
Open question & full solution → - MCQmediumCapacitor
There are six plates of equal area A and separation between the plates is d (d << A) are arranged as shown in figure. The equivalent capacitance between points 2 and 5, is α 0 .
Options
JEE Advanced
Open question & full solution → - NumericmediumCapacitor
As shown in the figure, two parallel-plate capacitors having equal plate area 200 cm² are connected with a ≠ b. The equivalent capacitance is xε₀ F. Find x.
JEE Mains 2023
Open question & full solution → - MCQmediumCapacitor
Three capacitors C₁ = C₂ = C₃ = 5 μF are connected as shown in the original figure. The space between the plates of C₁ is filled with a dielectric of dielectric constant K = 4. The effective capacitance between A and B is:
Options
JEE Mains 2025 4 April Evening Shift
Open question & full solution → - MCQmediumCapacitor

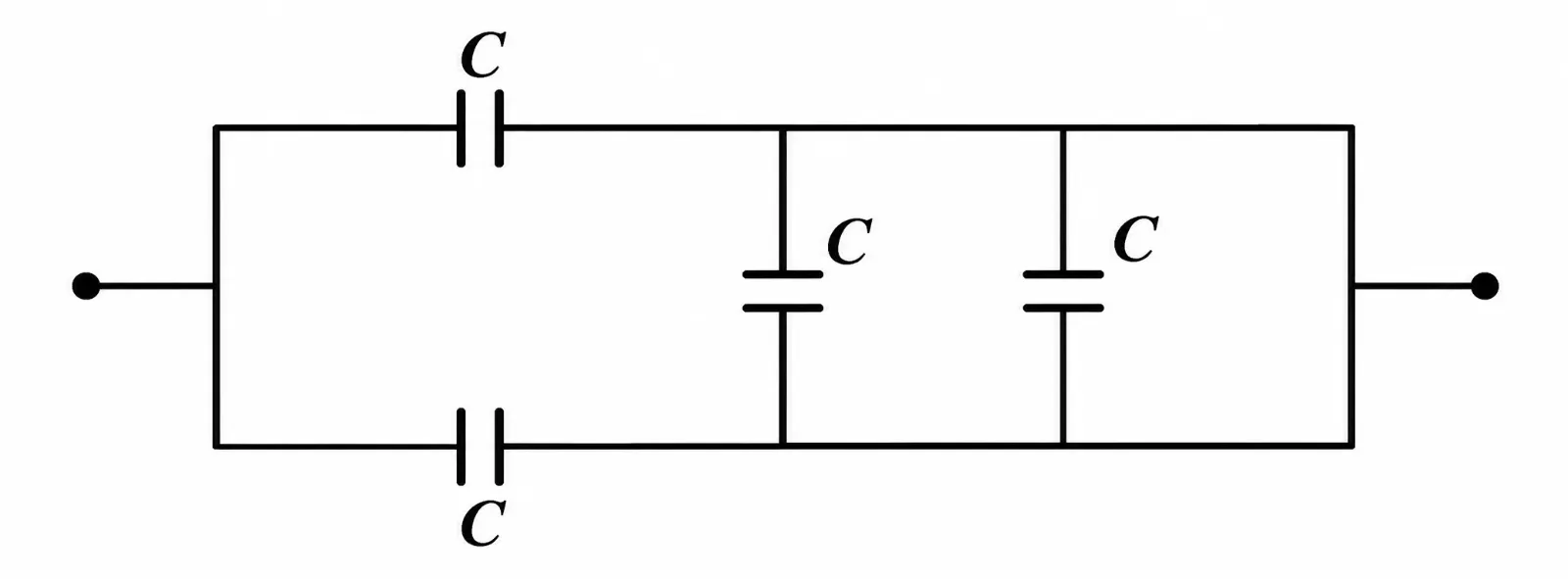

The equivalent capacitance of three capacitors each C in the combination shown in figure is: [Diagram: Image]
Options
NEET 2021NEET Previous Year
Open question & full solution → - MCQmediumCapacitor
Three capacitors are connected as shown, where two are 4 μF in series in an upper branch and the third is 4 μF in a lower branch. Equivalent capacitance between A and B is: [Diagram: Image]
Options
AIPMT 2003NEET Previous Year
Open question & full solution → - MCQmediumCapacitor

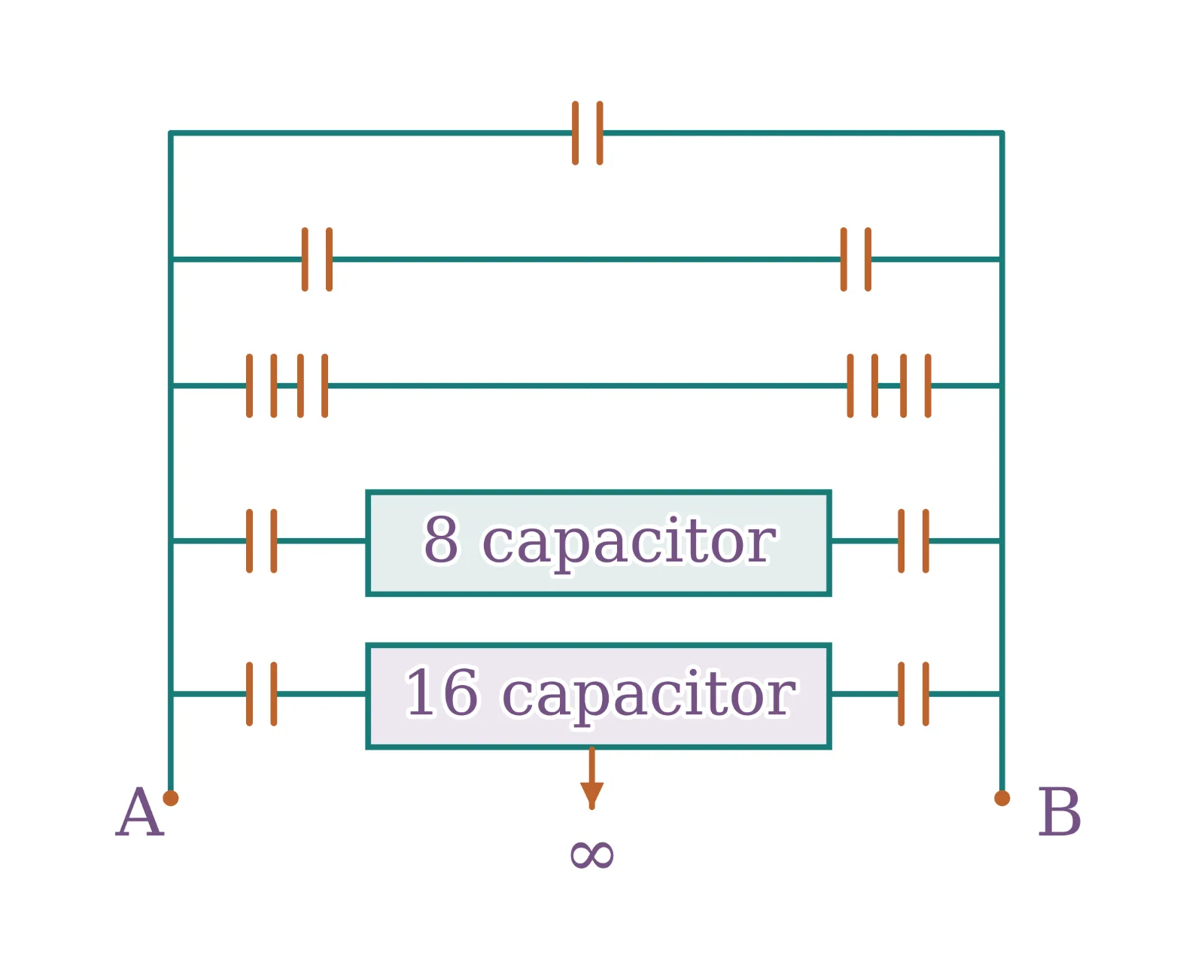

An infinite network of identical 1 μF capacitors is connected between A and B as shown. The equivalent capacitance is:
Options
JEE Mains
Open question & full solution → - MCQmediumCapacitor
A capacitor is made of a flat plate of area A and a second plate having a stair-like structure as shown in figure. If the area of each stair is A/3 and the height is d, the capacitance of the arrangement is:
Options
JEE Mains 2024 09 Apr Morning Shift
