RC circuit questions with solutions
Practice Capacitor for JEE Main, JEE Advanced, NEET, and Classes 11–12. Attempt each question, then open it for the full solution.
Showing 1–10 of 21 questions
- IntegermediumCapacitor
An 8 μF capacitor is connected across the 10 Ω resistor in a series circuit containing 10 Ω and 15 Ω resistors with a 5 V DC source. Find the steady-state charge on the capacitor. (The source paper prints the charge unit as μF.)
JEE Mains 2025 23 Jan Evening Shift
Open question & full solution → - Multi-correctdifficultCapacitor

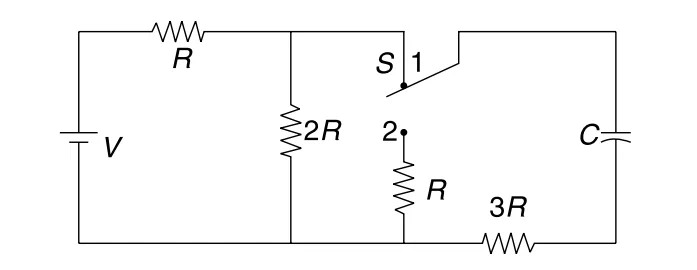

Consider the circuit shown in the figure. The switch has been in position 1 for a long time. Answer following questions:
(a) Find current through 2R.
(b) Find potential difference across the capacitor.
(c) At t = 0 the switch is moved to position 2. What current flows through the capacitor immediately after the switch is placed to position 2?
(d) Draw a graph of current Vs time for the current through the capacitor after the switch is moved to position 2. Indicate the time on the graph when the current becomes 37% of its value immediately after the switch is put to position 2
Select all that apply
Current Electricity Objective Conversion
Open question & full solution → - MCQeasyCapacitor
During charging of a 2.5 μF capacitor in a DC circuit, the displacement current is 0.25 mA. Find the rate of change of capacitor voltage dV/dt.
Options
JEE Mains 2025 23 Jan Evening Shift
Open question & full solution → - Multi-correctmediumCapacitor
A parallel plate capacitor has plate area A and separation between the plates equal to d. A material of dielectric constant K and resistivity ρ is filled between the plates. The switch is closed to connect the capacitor to a cell of emf V.
(a) Write the steady state current in the circuit and charge on the capacitor.
(b) When the circuit is in steady state, switch S is opened (at t = 0). Write charge on the capacitor as function of time (t) after this.
Select all that apply
Current Electricity Objective Conversion
Open question & full solution → - IntegermediumCapacitor

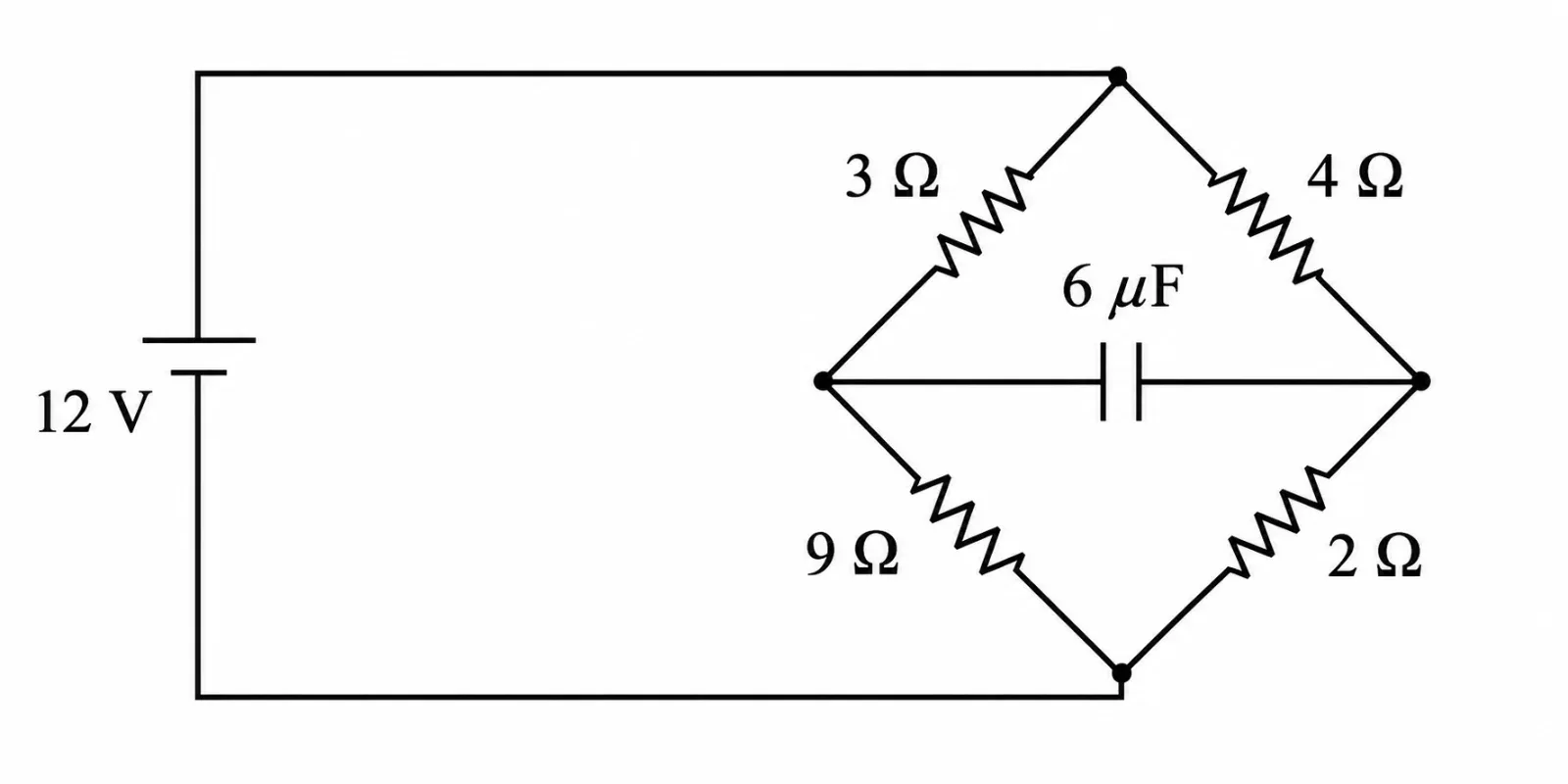

In the shown circuit, the energy stored in the 6 μF capacitor is n μJ. Find n.
13 April 2023 Evening Shift
Open question & full solution → - MCQeasyCapacitor

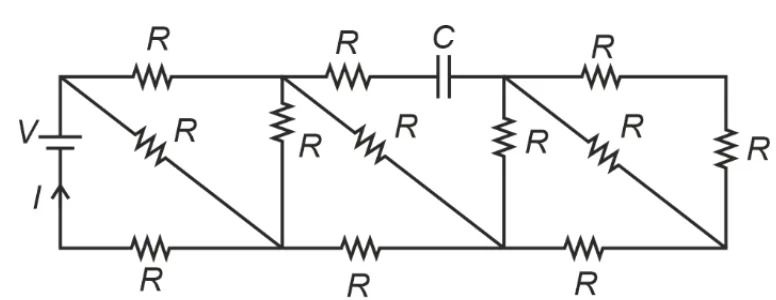

In the resistor-capacitor network shown in the original question figure, find the steady-state current I supplied by source V. Every resistor has resistance R.
Options
JEE Mains 2025 22 Jan Evening Shift
Open question & full solution → - NumericmediumCapacitor

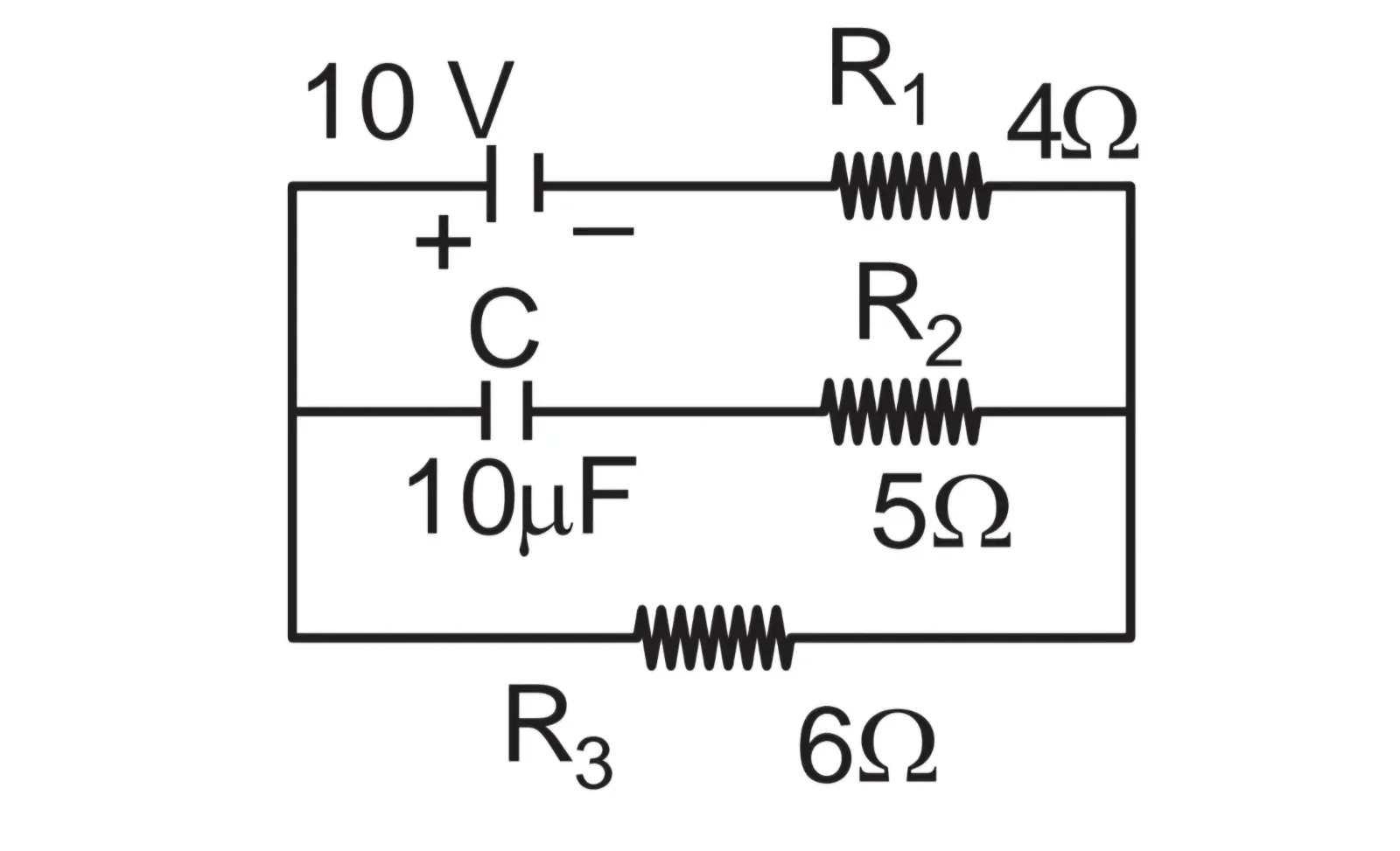

In an electrical circuit drawn below the amount of charge stored in the capacitor is ____ μC.
JEE Mains 2024 01 Feb Evening Shift
Open question & full solution → - MCQmediumCapacitor
A capacitor having initial charge q₀ and capacitance C is connected to a variable resistance R. The resistance R can have values ranging from 0 to R₀. How should we vary R with time (t) such that the discharging current remains constant with time?
Options
Current Electricity Objective Conversion
Open question & full solution → - MCQeasyCapacitor

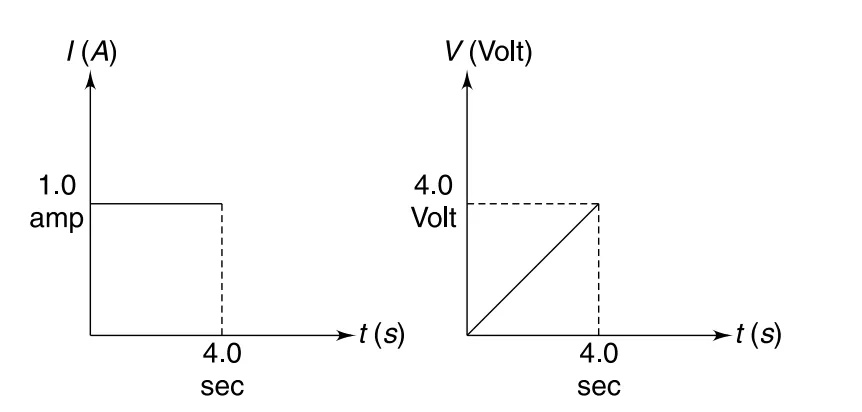

When the applied potential difference across a circuit element is increased linearly with time as shown in the second figure, the current in the circuit remains constant with time as shown in the first Figure. At t = 4 s the lead wire connecting the element to the source breaks. What will be the voltage across the element after t = 4 s? Can you identify the element?
Options
Current Electricity Objective Conversion
Open question & full solution → - NumericmediumCapacitor

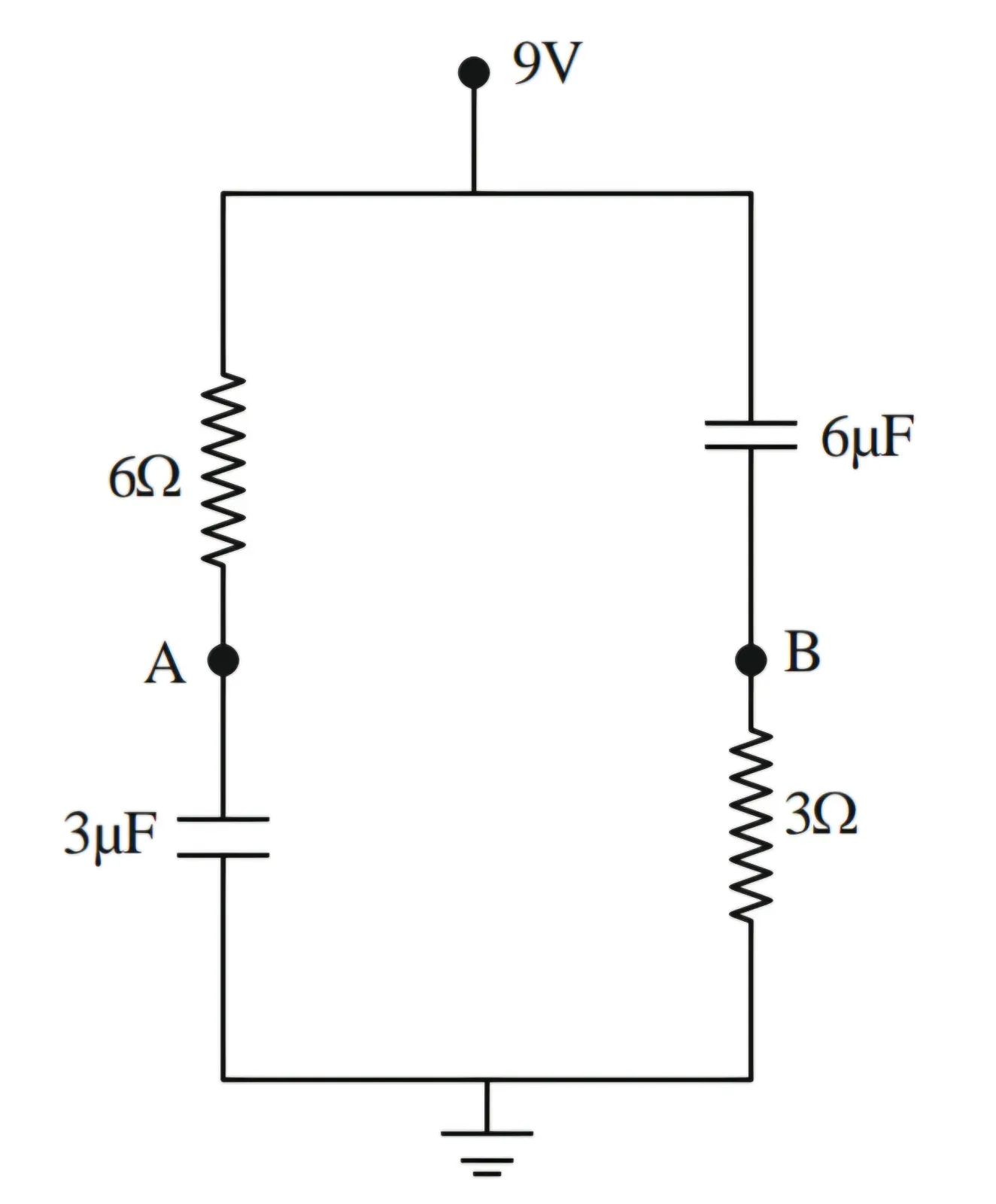

In the given figure, the charge stored in 6μF capacitor, when points A and B are joined by a connecting wire is _______μC.
JEE Mains 2024 29 Jan Evening Shift
Open question & full solution →
