circuit theory questions with solutions

Showing 1–10 of 23 questions

• Multi-correctmediumCurrent electricitycircuit theory

  In the circuit shown the switch is closed at time t = 0 then



  Select all that apply

  • Option A

    I = (V₀/R)$e^(-t/RC)$

  • Option B

    V꜀ = V₀(1-$e^(-t/RC))$

  • Option C

    Power absorbed by capacitor = (V₀²/R)($e^(-t/RC)-e^(-2t/RC))$

  • Option D

    V꜀ = V₀$e^(-t/RC)$

  Check answerShow answer

  Current Electricity Objective Conversion

  Open question & full solution →
• MCQmediumCurrent electricitycircuit theory

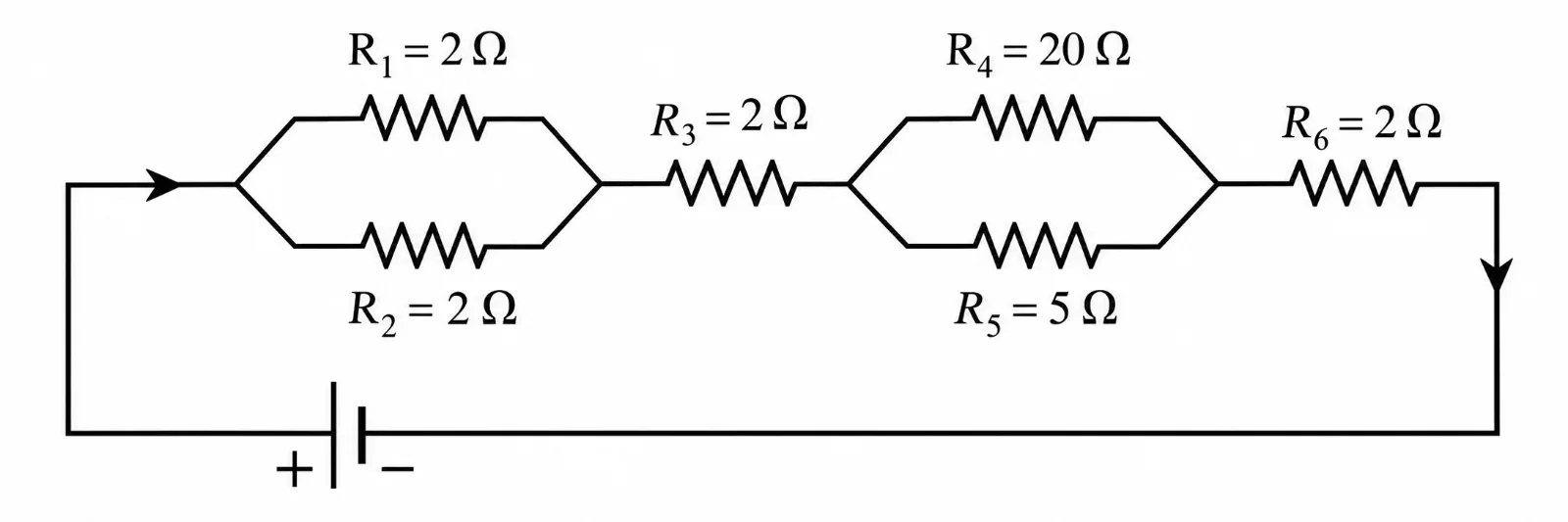

  As shown in the figure, a network of resistors is connected to a battery of 24 V with an internal resistance of 3Ω. The currents through the resistors R₄ and R₅ are I₄ and I₅ respectively. The values of I₄ and I₅ are :



  Options

  • Option A

    I₄ = 8/5 A and I₅ = 2/5 A

  • Option B

    I₄ = 24/5 A and I₅ = 6/5 A

  • Option C

    I₄ = 6/5 A and I₅ = 24/5 A

  • Option D

    I₄ = 2/5 A and I₅ = 8/5 A

  Check answerShow answer

  JEE Mains 2023 24 jan morning shift

  Open question & full solution →
• Multi-correctdifficultCurrent electricitycircuit theory

  In the circuit shown in Figure B1, B2 and B3 are identical bulbs and C is a parallel plate capacitor.




  Select all that apply

  • Option A

    In steady state, B1 is brightest

  • Option B

    In steady state, B2 and B3 have equal brightness

  • Option C

    While plate separation increases, B3 glows temporarily

  • Option D

    While plate separation increases, B2 becomes dimmer temporarily

  Check answerShow answer

  Current Electricity Objective Conversion

  Open question & full solution →
• MCQmediumCurrent electricitycircuit theory

  In the given circuit, the current in resistance R₃ is :



  Options

  • Option A

    1 A

  • Option B

    1.5 A

  • Option C

    2 A

  • Option D

    2.5 A

  Check answerShow answer

  JEE Mains 2024 29 Jan Evening Shift

  Open question & full solution →
• MCQeasyCurrent electricitycircuit theory

  Which one of the following is not a measurable quantity ?

  Options

  • Option A

    Voltage difference

  • Option B

    Resistance

  • Option C

    Voltage

  • Option D

    Displacement current

  Check answerShow answer

  JEE Mains 202628 January Evening Shift

  Open question & full solution →
• MCQdifficultCurrent electricitycircuit theory

  Find current through the cell and potential difference between A and D in the circuit shown in the Figure.



  Options

  • Option A

    I = E/R and V(A,D) = E/2

  • Option B

    I = E/(2R) and V(A,D) = E/2

  • Option C

    I = 2E/R and V(A,D) = E

  • Option D

    I = E/R and V(A,D) = 0

  Check answerShow answer

  Current Electricity Objective Conversion

  Open question & full solution →
• MCQmediumCurrent electricitycircuit theory

  Refer to the circuit shown in the figure. Using the current directions I₁, I₂ and I₃ indicated there, what are the values of the three currents?



  Options

  • Option A

    I₁ = 2.5 A, I₂ = 1.875 A, I₃ = 1.875 A

  • Option B

    I₁ = 1.875 A, I₂ = 2.5 A, I₃ = 1.875 A

  • Option C

    I₁ = 1.875 A, I₂ = 1.875 A, I₃ = 2.5 A

  • Option D

    I₁ = 2.5 A, I₂ = 2.5 A, I₃ = 1.875 A

  Check answerShow answer

  JEE Mains 2026 5 April Morning Shift

  Open question & full solution →
• MCQmediumCurrent electricitycircuit theory

  In the resistor network shown, the current through R₂ is:



  Options

  • Option A

    1/3 A

  • Option B

    1/4 A

  • Option C

    2/3 A

  • Option D

    1/2 A

  Check answerShow answer

  JEE Mains11 April 2023Shift 2Evening Shift

  Open question & full solution →
• MCQmediumCurrent electricitycircuit theory

  Refer to the network shown in the figure. The three upper branches are identical, each containing three 5 V cells and three 3 Ω resistors in series, while the lower branch contains three 3 Ω resistors in series. What current flows between terminals A and B?



  Options

  • Option A

    12.5 A

  • Option B

    1.25 A

  • Option C

    7.5 A

  • Option D

    5 A

  Check answerShow answer

  JEE Mains 2026 5 April Morning Shift

  Open question & full solution →
• IntegereasyCurrent electricitycircuit theory

  For the electrical circuit shown in the original question figure, find the current drawn from the battery.



  Your answer

  Check answerShow answer

  JEE Main 2025 (Online) 22 jan morning shiftkinematics previous year

  Open question & full solution →
