Vernier Calipers and Screw Gauge: Measurement and Errors questions with solutions

Showing 1–10 of 76 questions

• IntegerdifficultUnits, Dimensions, Measurements and ErrorsVernier Calipers and Screw Gauge: Measurement and Errors

  A screw gauge advances 1.8 mm in 6 complete rotations and has 60 circular divisions. Enter the least count in micrometres.

  Your answer

  Check answerShow answer

  JEE MainsNEET

  Open question & full solution →
• Multi-correctdifficultUnits, Dimensions, Measurements and ErrorsVernier Calipers and Screw Gauge: Measurement and Errors

  The least counts of two instruments are LC₁ = 0.02 mm and LC₂ = 0.005 mm. Which statements are correct?

  Select all that apply

  • Option A

    Instrument 2 has four times finer resolution than instrument 1.

  • Option B

    For a 1.00 mm measurement, one-LC fractional uncertainty is 2% for instrument 1.

  • Option C

    For a 1.00 mm measurement, one-LC fractional uncertainty is 0.5% for instrument 2.

  • Option D

    A smaller least count always guarantees absence of systematic error.

  Check answerShow answer

  JEE MainsNEET

  Open question & full solution →
• Multi-correctdifficultUnits, Dimensions, Measurements and ErrorsVernier Calipers and Screw Gauge: Measurement and Errors

  A vernier calipers has 20 VSD = 18 MSD and 1 MSD = 1 mm. Which statements are correct?

  Select all that apply

  • Option A

    Least count = 0.10 mm

  • Option B

    Least count = 0.05 mm

  • Option C

    If the 7th vernier division coincides, the vernier contribution is 0.70 mm

  • Option D

    For the same MSD, a 20 VSD = 19 MSD vernier has better resolution

  Check answerShow answer

  JEE MainsNEET

  Open question & full solution →
• IntegerdifficultUnits, Dimensions, Measurements and ErrorsVernier Calipers and Screw Gauge: Measurement and Errors

  A direct vernier has 80 VSD = 78 MSD and 1 MSD = 0.4 mm. Enter the least count in micrometres.

  Your answer

  Check answerShow answer

  JEE MainsNEET

  Open question & full solution →
• MCQdifficultUnits, Dimensions, Measurements and ErrorsVernier Calipers and Screw Gauge: Measurement and Errors

  A screw gauge advances 3.0 mm in 8 complete rotations and has 75 divisions on its circular scale. While measuring a wire, the pitch-scale reading is 1.50 mm and the 46th circular-scale division coincides with the reference line. The zero error is +0.015 mm. The corrected diameter is:

  Options

  • Option A

    1.700 mm

  • Option B

    1.715 mm

  • Option C

    1.730 mm

  • Option D

    1.745 mm

  Check answerShow answer

  JEE MainsNEET

  Open question & full solution →
• MCQmediumUnits, Dimensions, Measurements and ErrorsVernier Calipers and Screw Gauge: Measurement and Errors

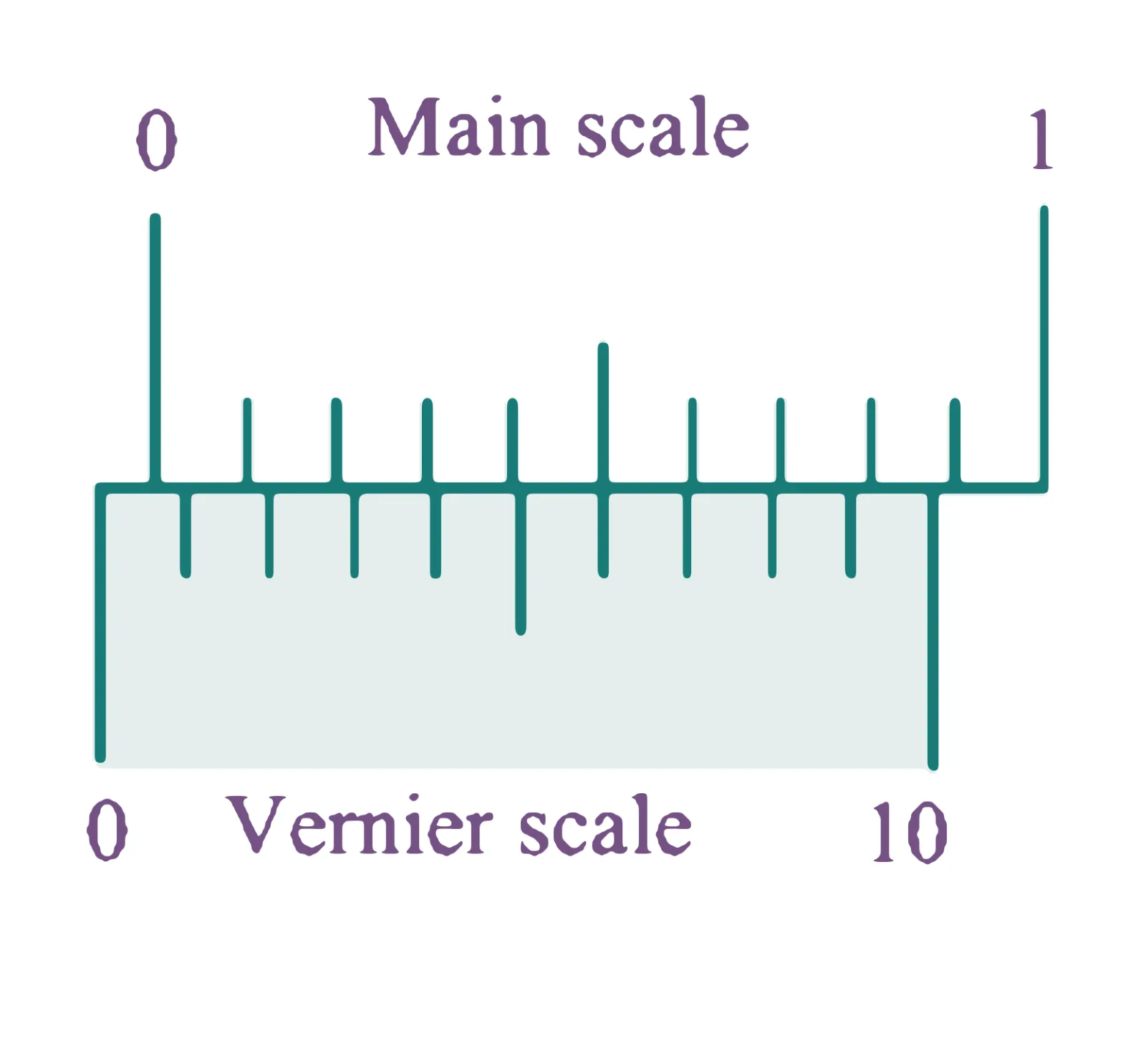

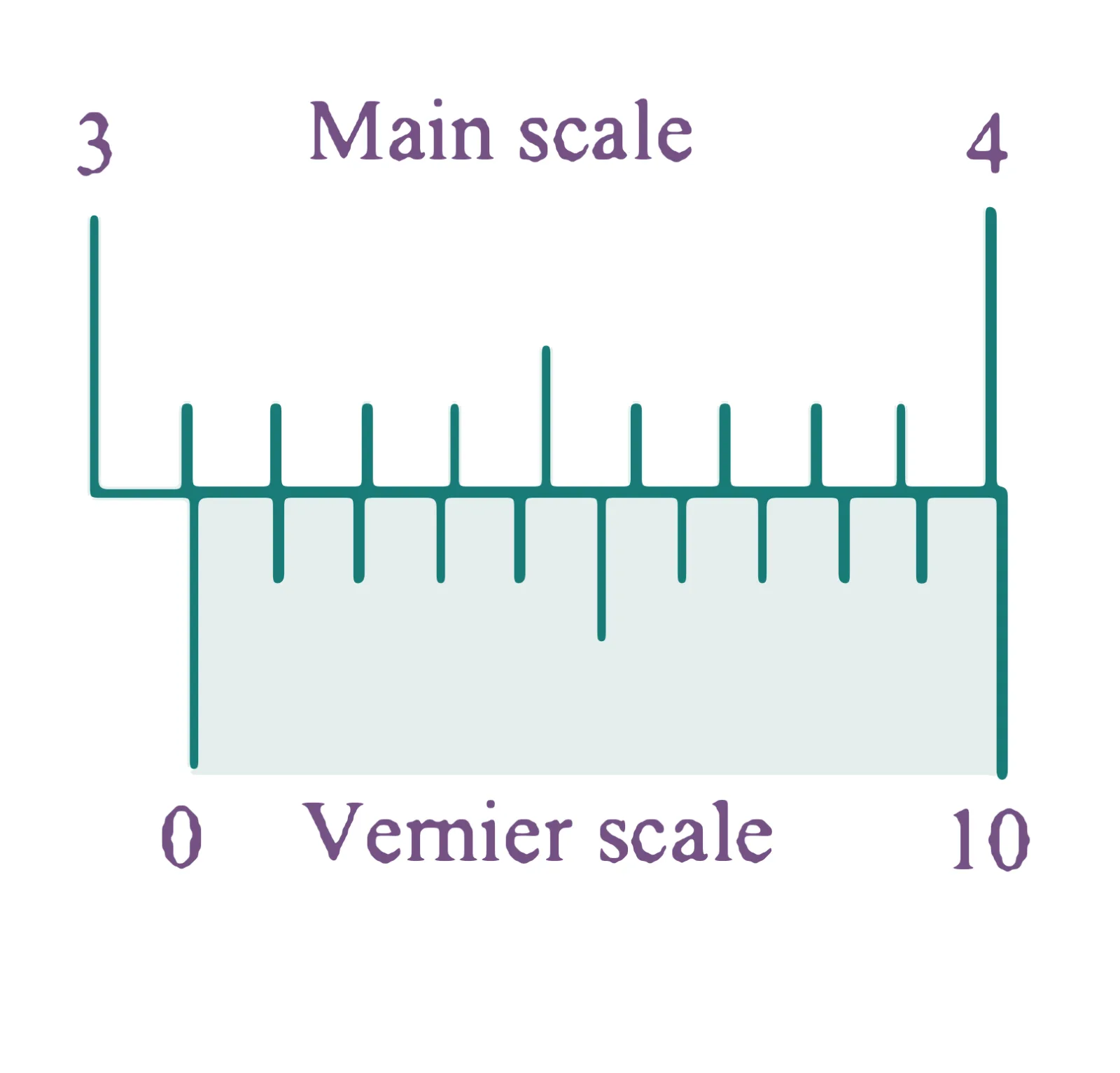

  A Vernier callipers has 1 MSD = 0.1 cm and 10 VSD = 9 MSD. The source figure shows the reading with jaws closed and the reading with a solid sphere between the jaws. Find the corrected sphere diameter.



  Options

  • Option A

    3.07 cm

  • Option B

    3.11 cm

  • Option C

    3.15 cm

  • Option D

    3.17 cm

  Check answerShow answer

  JEE Advanced 2021

  Open question & full solution →
• MCQeasyUnits, Dimensions, Measurements and ErrorsVernier Calipers and Screw Gauge: Measurement and Errors

  In a travelling microscope, 300 main-scale divisions are equal to 15 cm. The vernier has 25 divisions equal to 24 main-scale divisions. The least count of the microscope is:

  Options

  • Option A

    0.002 cm

  • Option B

    0.0005 cm

  • Option C

    0.0025 cm

  • Option D

    0.001 cm

  Check answerShow answer

  JEE Mains 2025 4 April Evening Shift

  Open question & full solution →
• IntegerdifficultUnits, Dimensions, Measurements and ErrorsVernier Calipers and Screw Gauge: Measurement and Errors

  A hollow tube has corrected external diameter 28.60 mm and corrected internal diameter 24.20 mm. Enter the wall thickness in micrometres.

  Your answer

  Check answerShow answer

  JEE MainsNEET

  Open question & full solution →
• IntegerdifficultUnits, Dimensions, Measurements and ErrorsVernier Calipers and Screw Gauge: Measurement and Errors

  A screw gauge has pitch 0.5 mm and 100 circular divisions. PSR = 2.0 mm, CSR = 64 and zero error = -0.02 mm. Enter the corrected reading in micrometres.

  Your answer

  Check answerShow answer

  JEE MainsNEET

  Open question & full solution →
• MCQdifficultUnits, Dimensions, Measurements and ErrorsVernier Calipers and Screw Gauge: Measurement and Errors

  A vernier calipers has N vernier divisions equal to (N - 3) main scale divisions. One MSD is 0.60 mm and the least count is 0.03 mm. The value of N is:

  Options

  • Option A

    40

  • Option B

    50

  • Option C

    60

  • Option D

    75

  Check answerShow answer

  JEE MainsNEET

  Open question & full solution →
