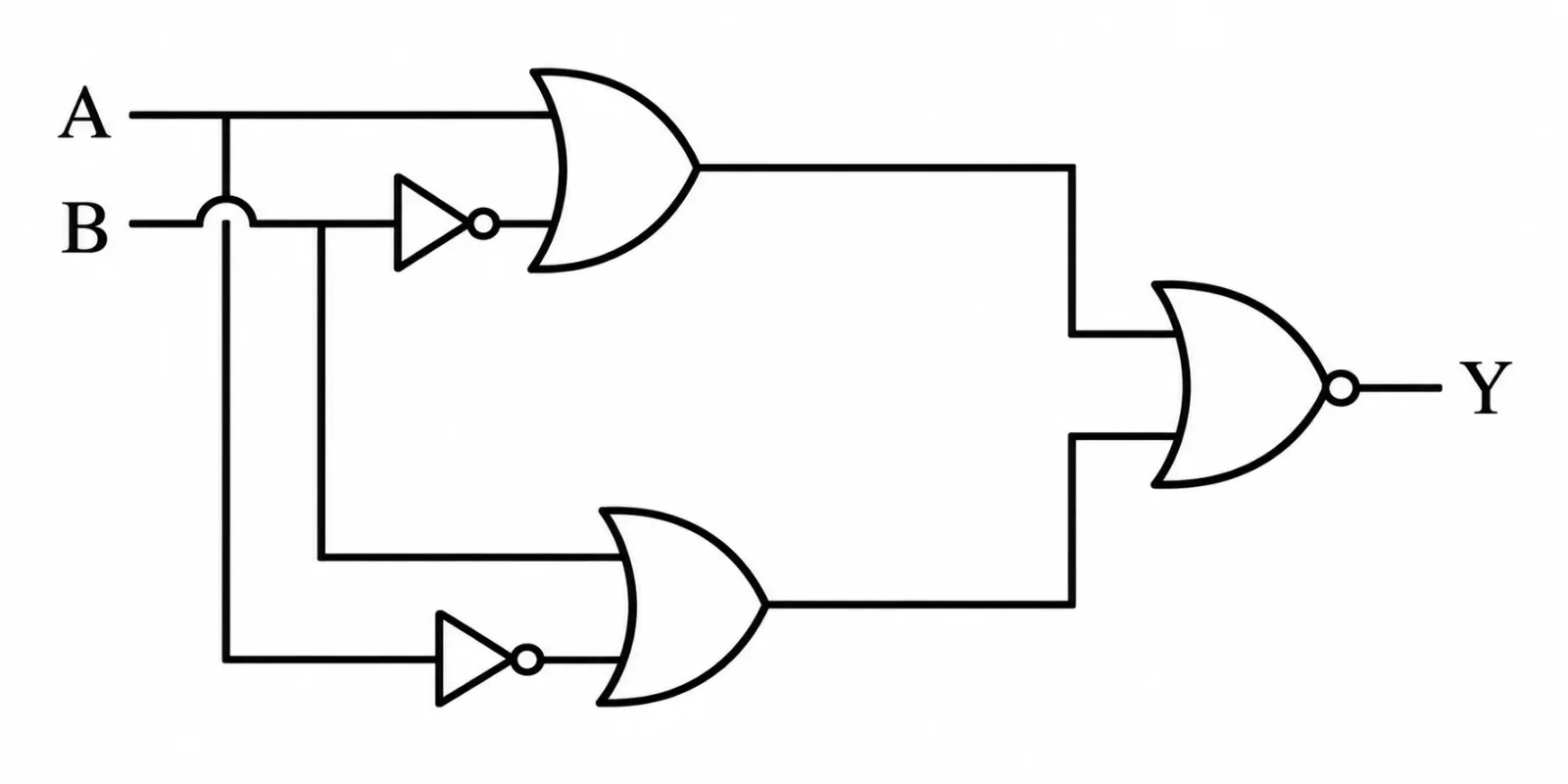

The output of the given circuit diagram is Image

Question

G1 Physics · Accepted Answer

Image From the logic circuit: For A = 0, A̅ = 1 For A = 1, A̅ = 0 For B = 0, B̅ = 1 For B = 1, B̅ = 0 The final output is zero for all four input combinations. Therefore, the truth table shown in Image 3 is correct.
