Match List-I with List-II
List-I (Y vs X)
A. Y = magnetic susceptibility, X = magnetising field

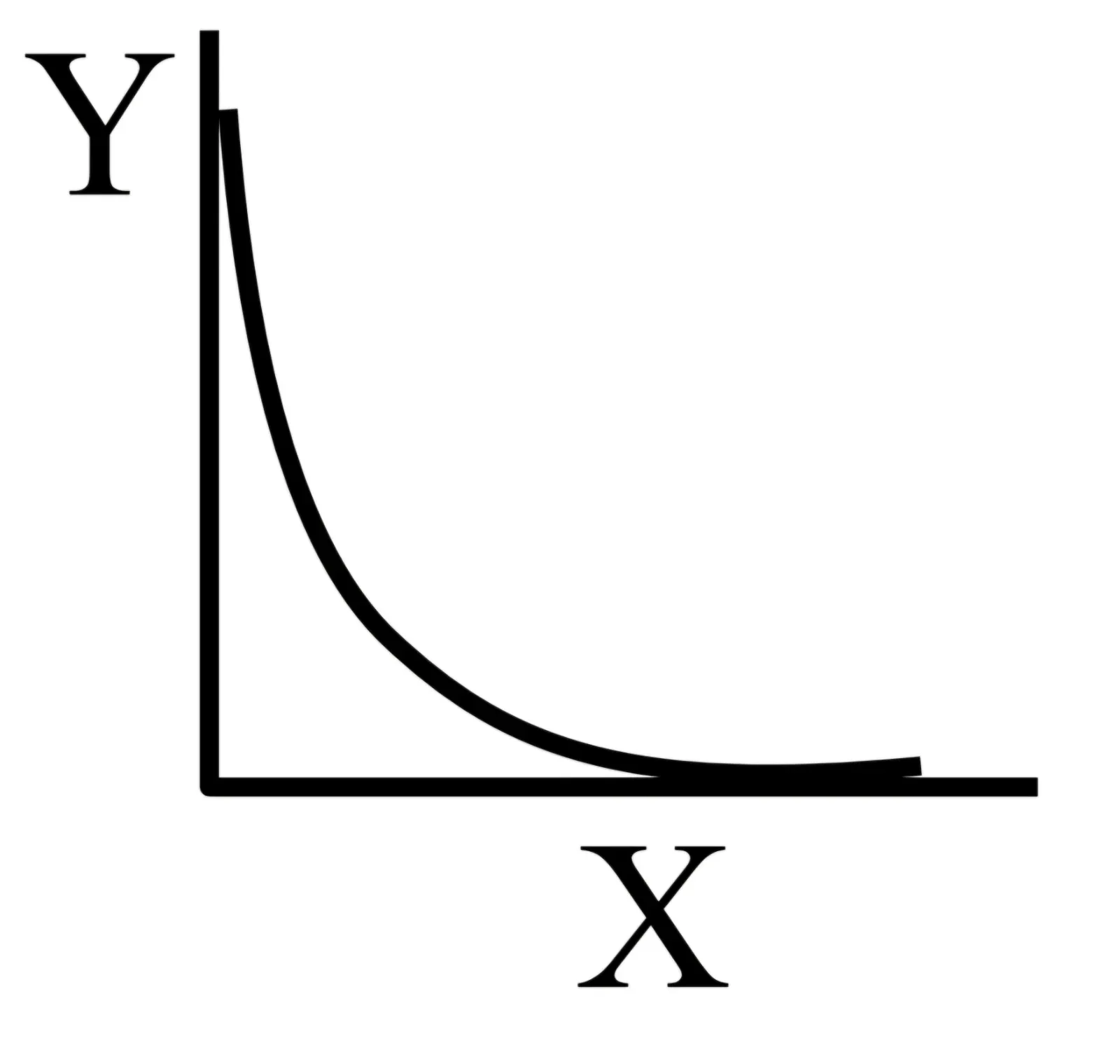

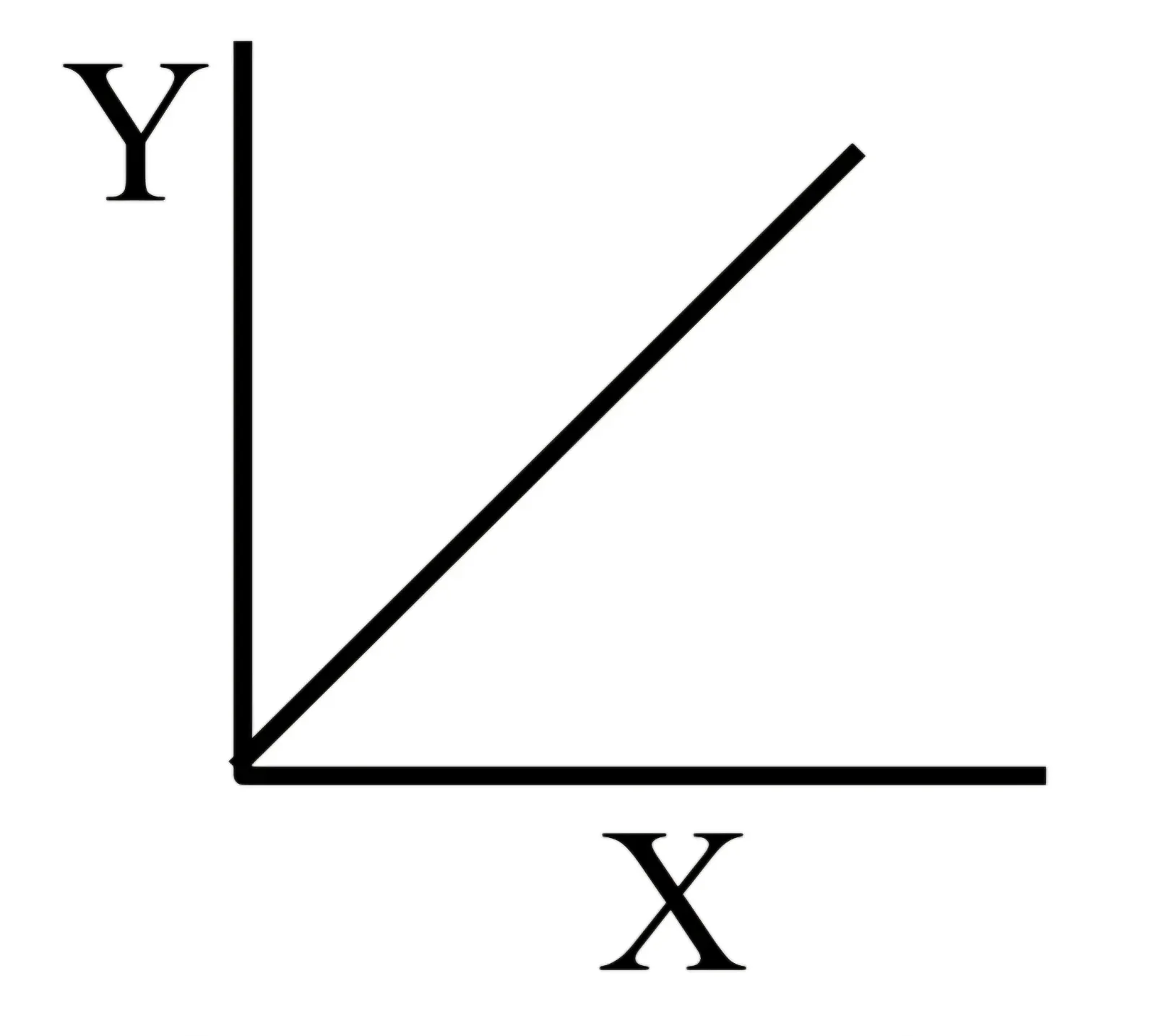

B. Y = magnetic field, X = distance from centre of a current carrying wire for x < a (where a = radius of wire)
C. Y = magnetic field, X = distance from centre of a current carrying wire for x > a (where a = radius of wire)
D. Y = magnetic field inside solenoid, X = distance from center
List-II (Shape of Graph) I.
II.
III.
IV.
Choose the correct answer from the options given below :

Question

Match List-I with List-II

List-I (Y vs X)
A. Y = magnetic susceptibility, X = magnetising field
B. Y = magnetic field, X = distance from centre of a current carrying wire for x < a (where a = radius of wire)
C. Y = magnetic field, X = distance from centre of a current carrying wire for x > a (where a = radius of wire)
D. Y = magnetic field inside solenoid, X = distance from center

List-II (Shape of Graph) I.

II.

III.

IV.

Choose the correct answer from the options given below :

G1 Physics · Accepted Answer

For magnetic susceptibility versus magnetising field, the graph is approximately horizontal → III. Inside a uniformly current-carrying wire: B ∝ r so the graph is a straight line through the origin → I. Outside a long straight current-carrying wire: B ∝ 1/r so the graph is a decreasing hyperbola → IV. Inside a long solenoid, magnetic field is nearly uniform in the central region and decreases near the ends → II. Therefore: A-III, B-I, C-IV, D-II According to the source paper, the keyed answer i…
