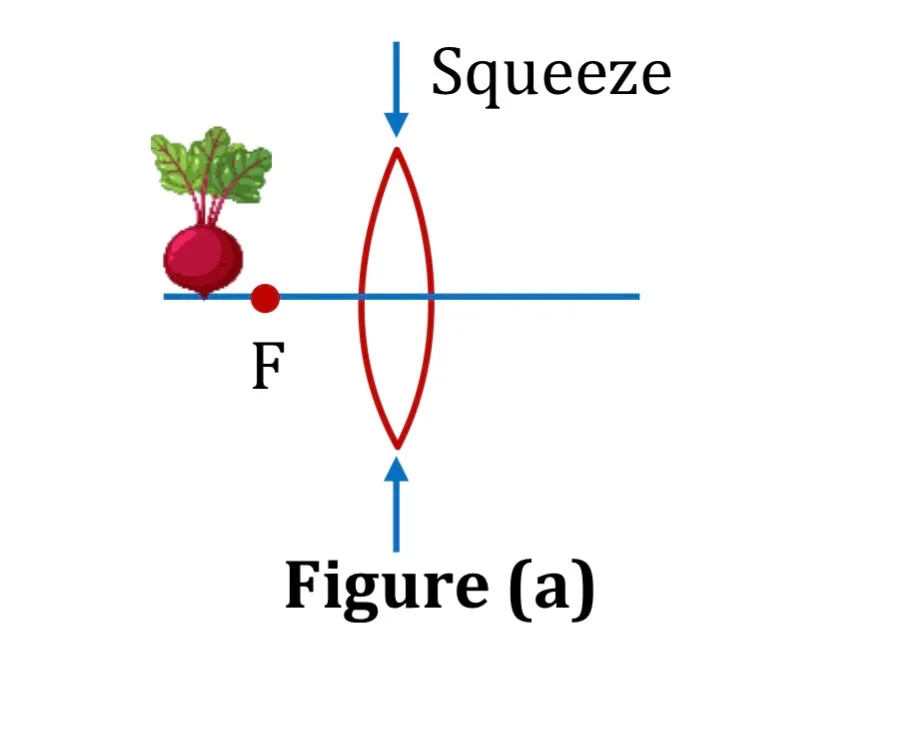

A turnip sits before a thin converging lens, outside the focal point of the lens. The lens is filled with a transparent gel so that it is flexible; by squeezing its ends toward its center [as indicated in figure(a)], you can change the curvature of its front and rear sides.
Physics · Geometrical optics · lens and combination lens,silvered lens
A turnip sits before a thin converging lens, outside the focal point of the lens. The lens is filled with a transparent gel so that it is flexible; by squeezing its ends toward its center [as indicated in figure(a)], you can change the curvature of its front and rear sides.
Sub-question 1
When you squeeze the lens, the image.
Options
Sub-question 2
When you squeeze the lens, the lateral height of image.
Options
Sub-question 3

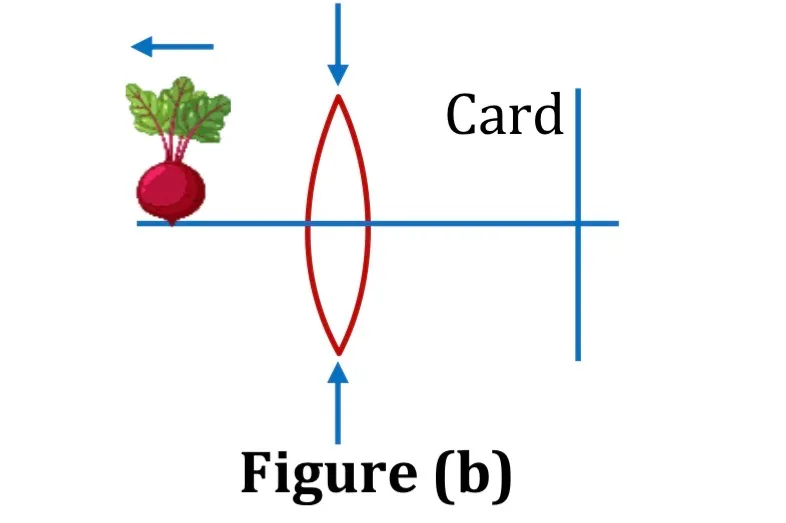

Suppose that a sharp image must be formed on a card which is at a certain distance behind the lens [figure(b)], while you move the turnip away from the lens, then you should
Options
