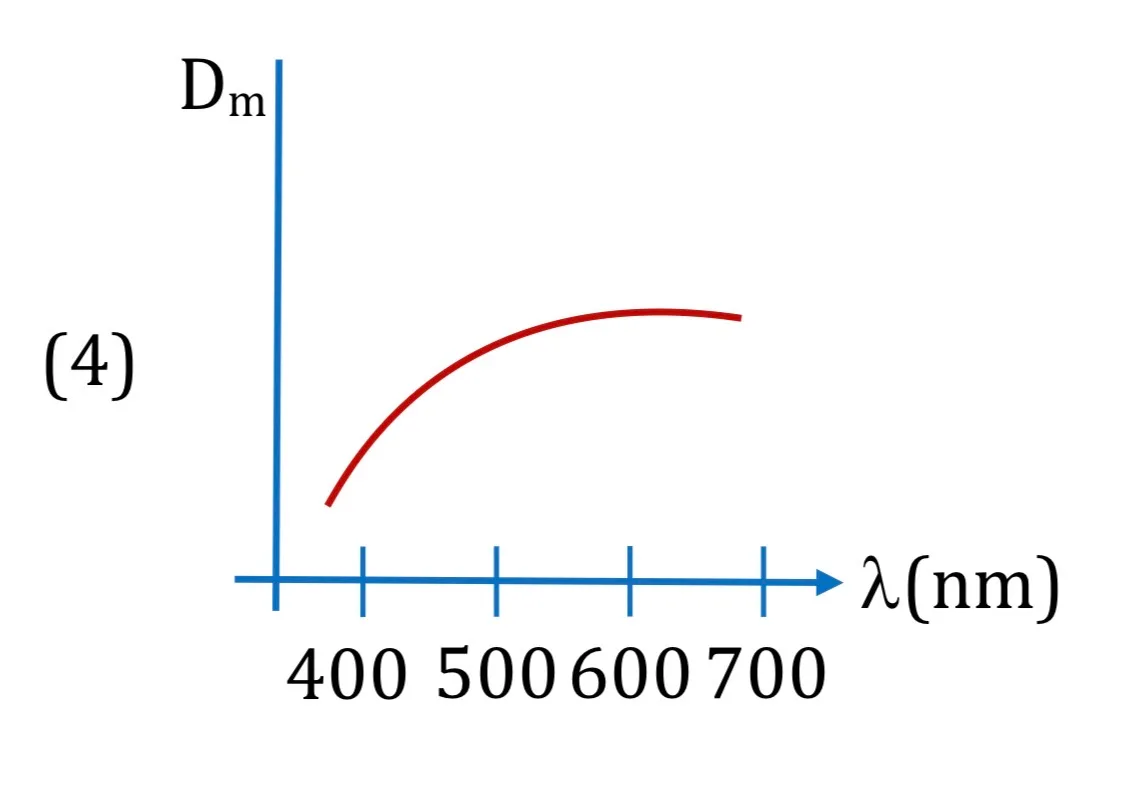

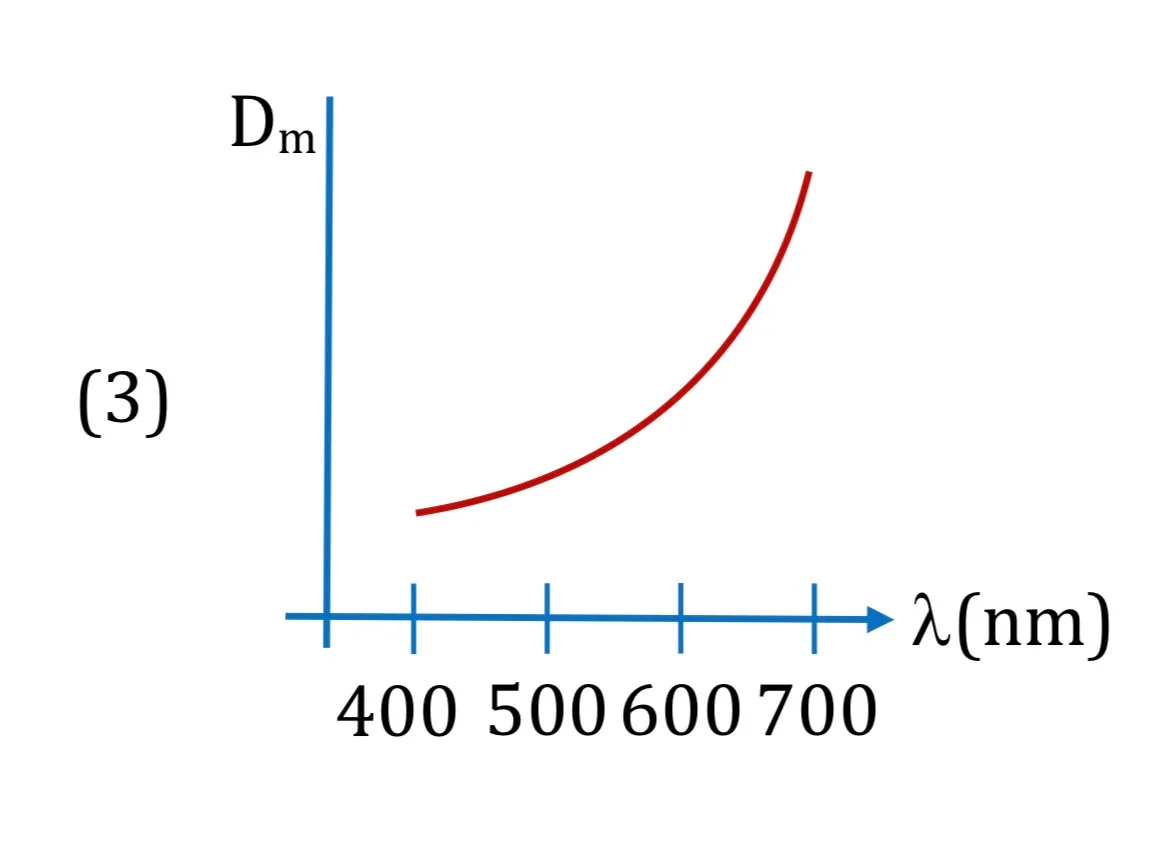

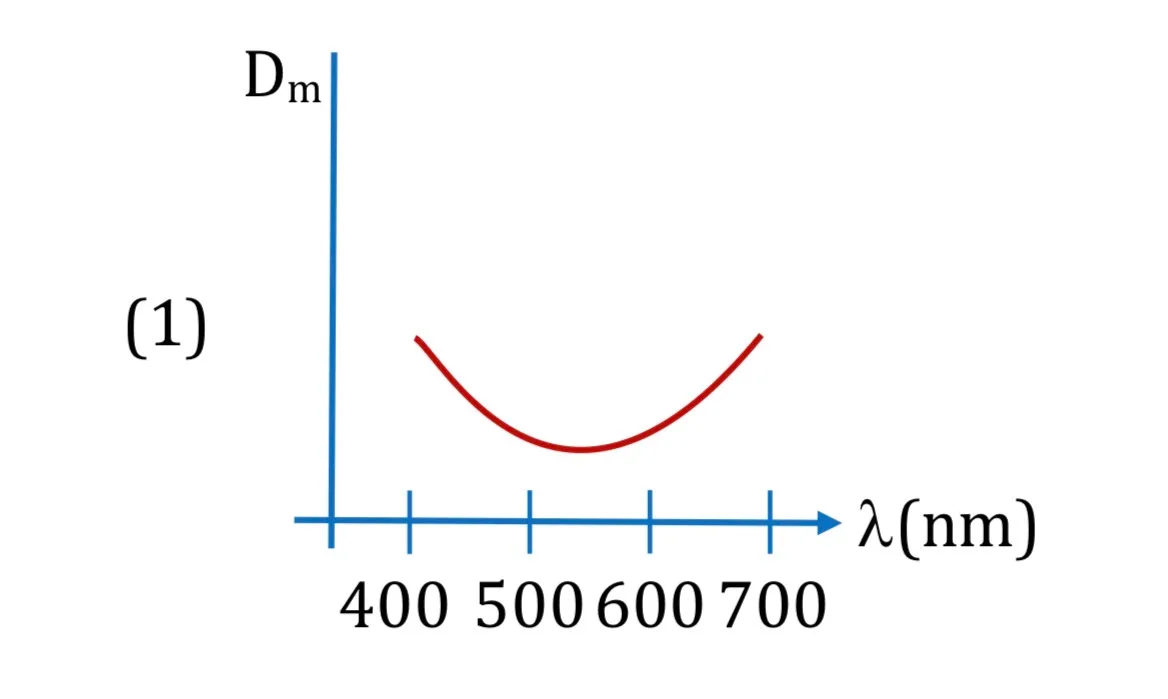

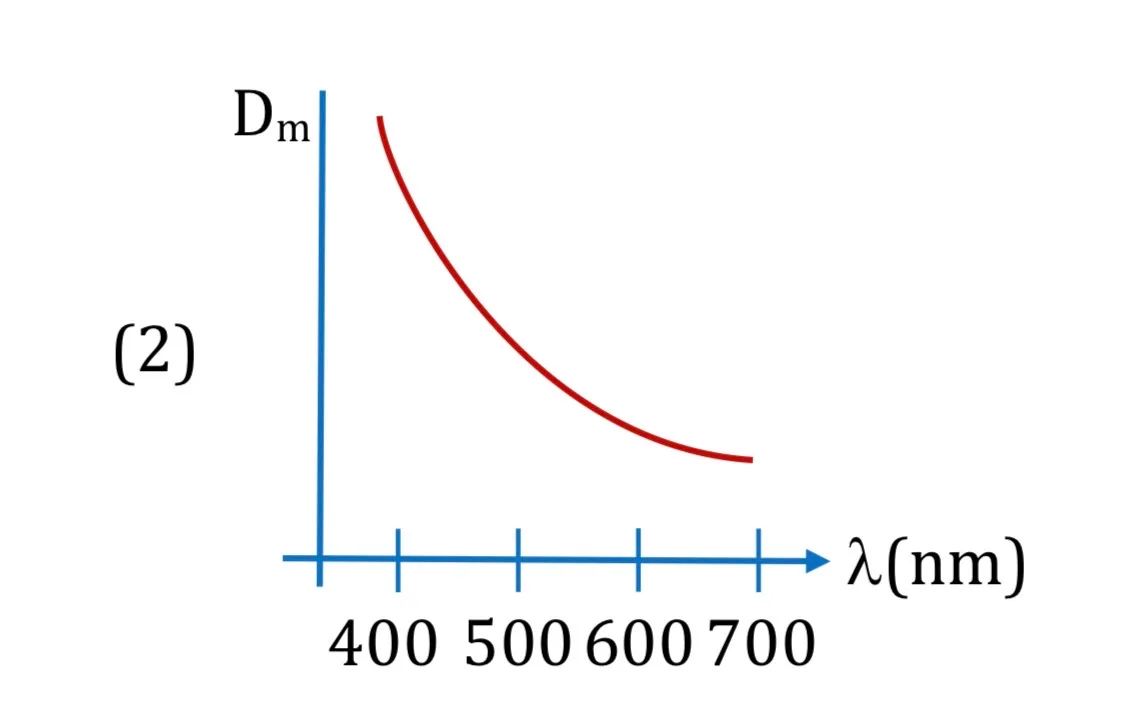

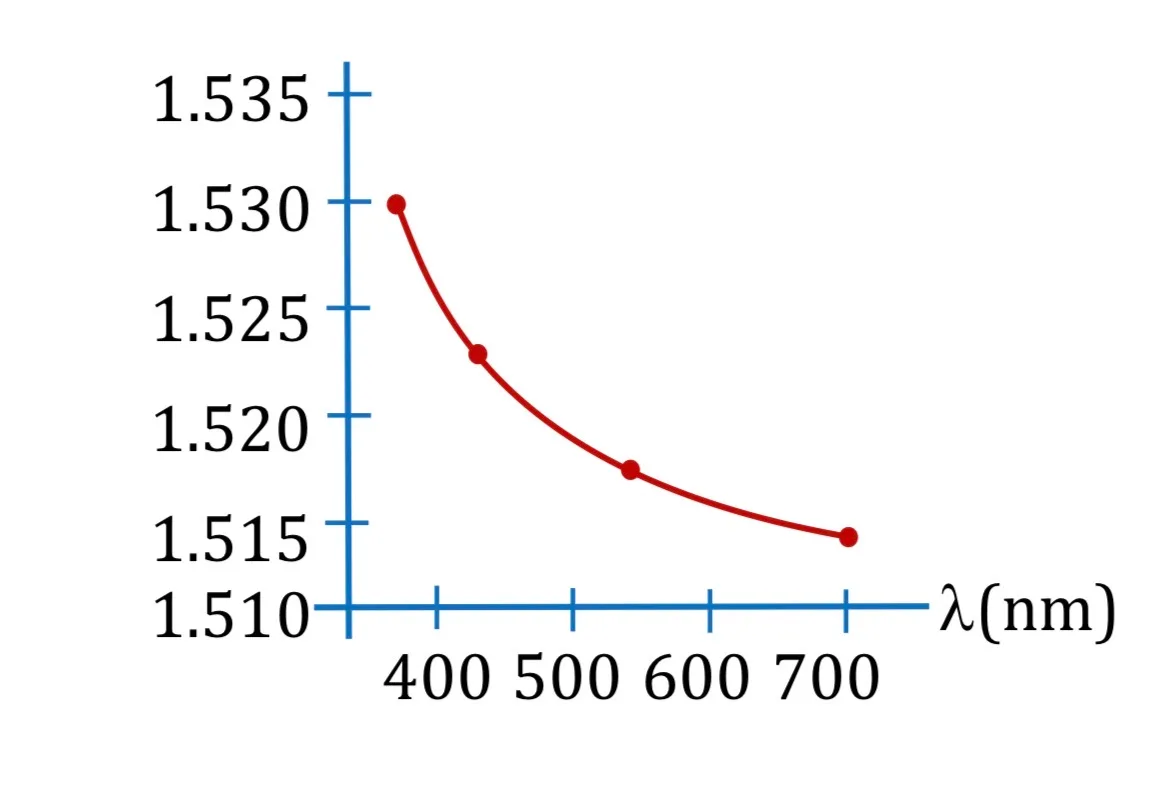

The variation of refractive index of a crown glass thin prism with wavelength of the incident light is shown. Which of the following graphs is the correct one, if Dm is the angle of minimum deviation?

Question

G1 Physics · Accepted Answer

Derived solution: Step 1: For a prism use r₁ + r₂ = A and δ = i + e - A. At minimum deviation i = e and r₁ = r₂ = A/2, so μ = sin[(A + δₘ)/2]/sin(A/2). Step 2: Substitute the values given in the question and apply the geometry/sign convention shown. Step 3: On simplification the result is Image 2. Therefore the correct option is B.
