List-I contains four combinations of two lenses whose focal lengths are indicated. In all cases the object is 20 cm to the left of lens 1 and the two lenses are 5 cm apart. Match List-I with the final-image positions in List-II. Image

Physics · Geometrical optics · lens and combination lens,silvered lens

JEE Advanced 2022

List-I contains four combinations of two lenses whose focal lengths are indicated. In all cases the object is 20 cm to the left of lens 1 and the two lenses are 5 cm apart. Match List-I with the final-image positions in List-II. Image

List 1

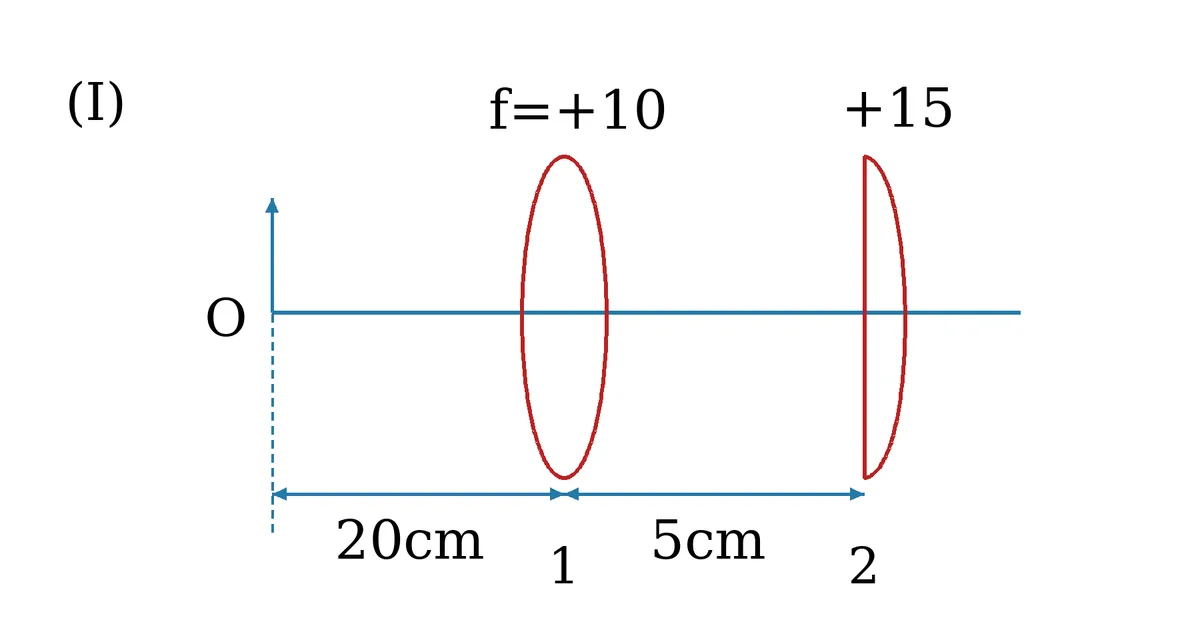

  1. I. f₁ = + 10 cm, f₂ = + 15 cm

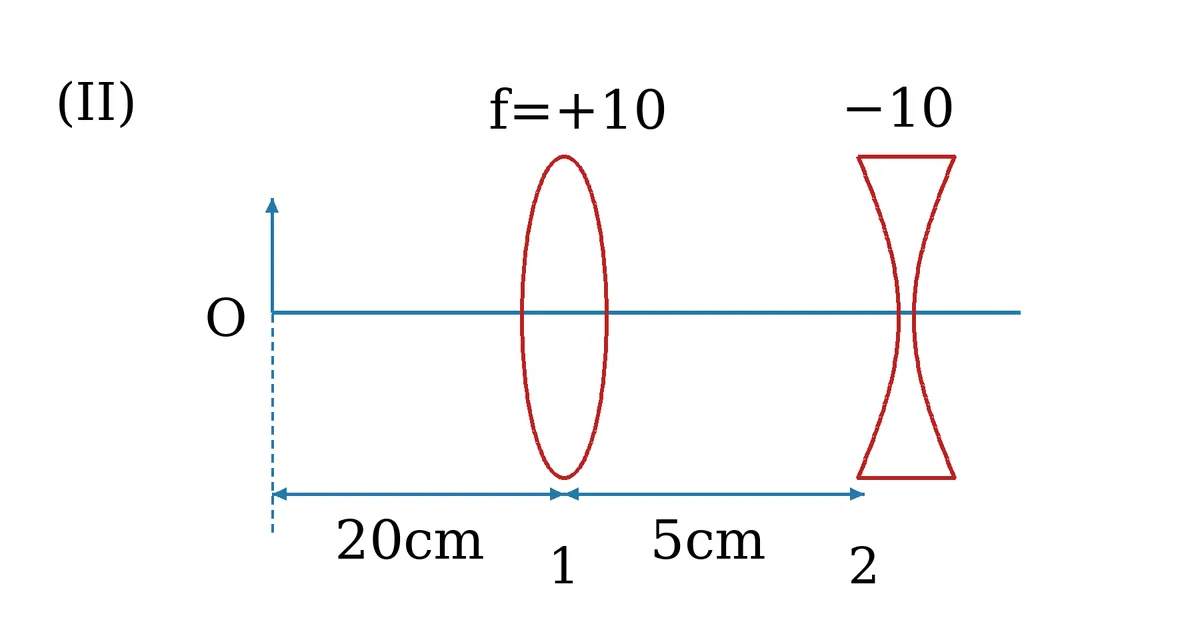

  2. II. f₁ = + 10 cm, f₂ = - 10 cm

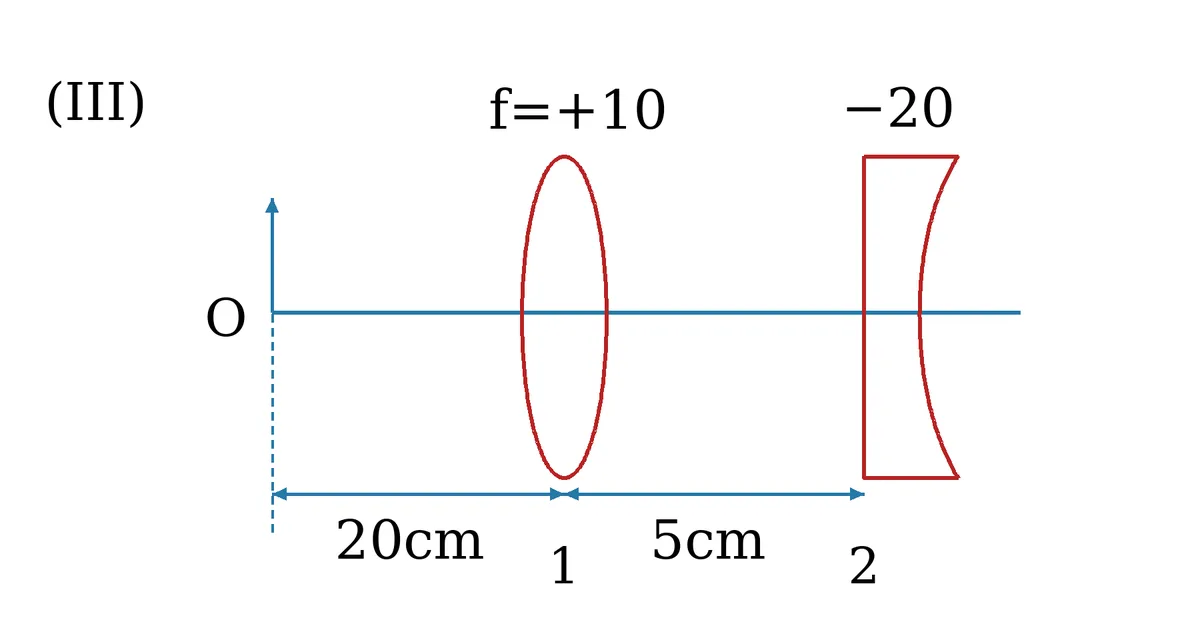

  3. III. f₁ = + 10 cm, f₂ = - 20 cm

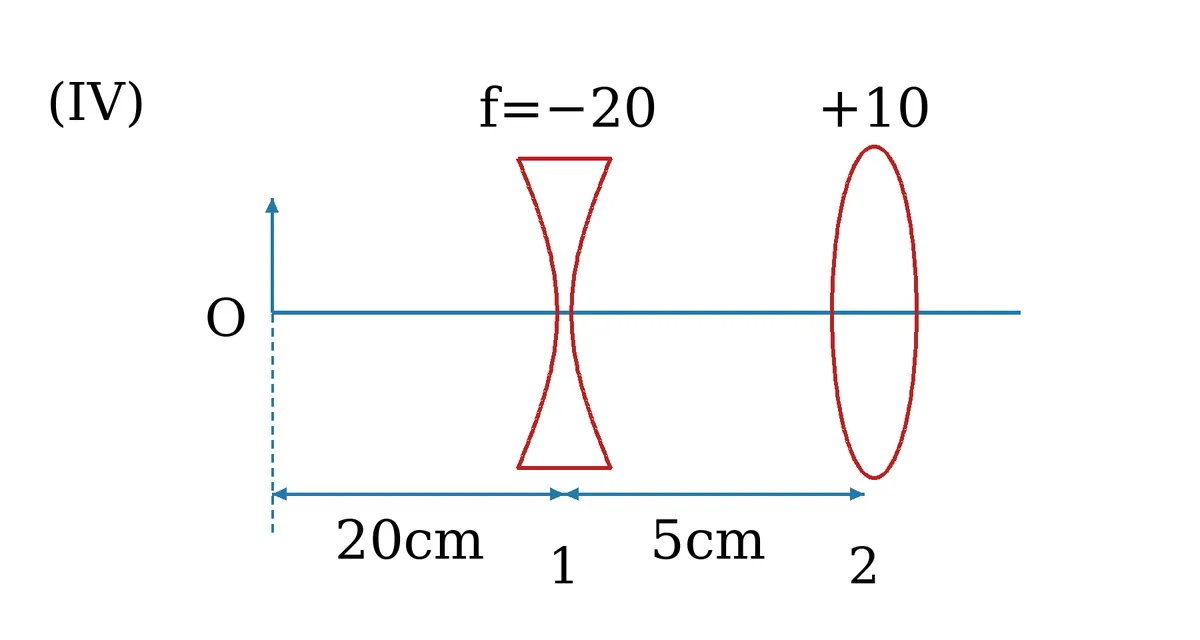

  4. IV. f₁ = - 20 cm, f₂ = + 10 cm

  5. .

List 2

  1. (P) Final image 7.5 cm to the right of lens 2

  2. (Q) Final image 60.0 cm to the right of lens 2

  3. (R)Final image 30.0 cm to the left of lens 2

  4. (S) Final image 6.0 cm to the right of lens 2

  5. T. Final image 30.0 cm to the right of lens 2

Options
