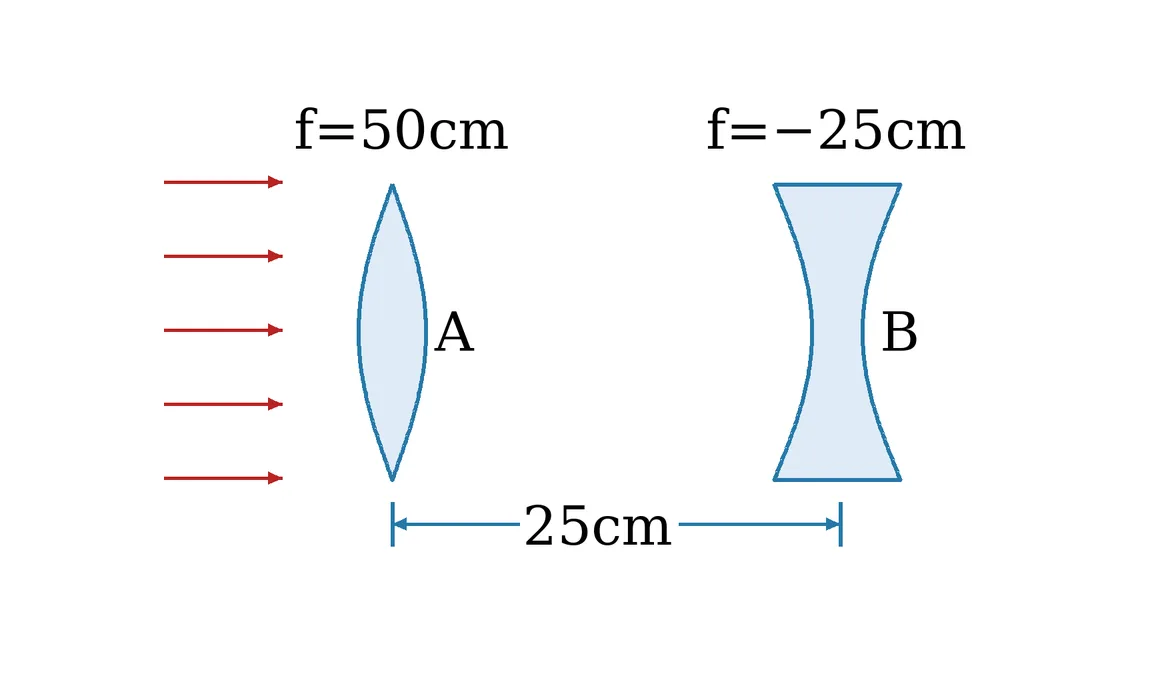

The two lenses shown are illuminated by a beam of parallel light from the left. Lens B is then moved slowly toward lens A. The beam emerging from lens B is :

Question

G1 Physics · Accepted Answer

Derived solution: Step 1: Use the thin-lens formula 1/f = 1/v - 1/u with m = v/u. For lens material/medium changes use the lens-maker relation with the relative refractive index; powers of thin lenses in contact add. Step 2: Substitute the values given in the question and apply the geometry/sign convention shown. Step 3: On simplification the result is Initially parallel and then diverging. Therefore the correct option is A.
