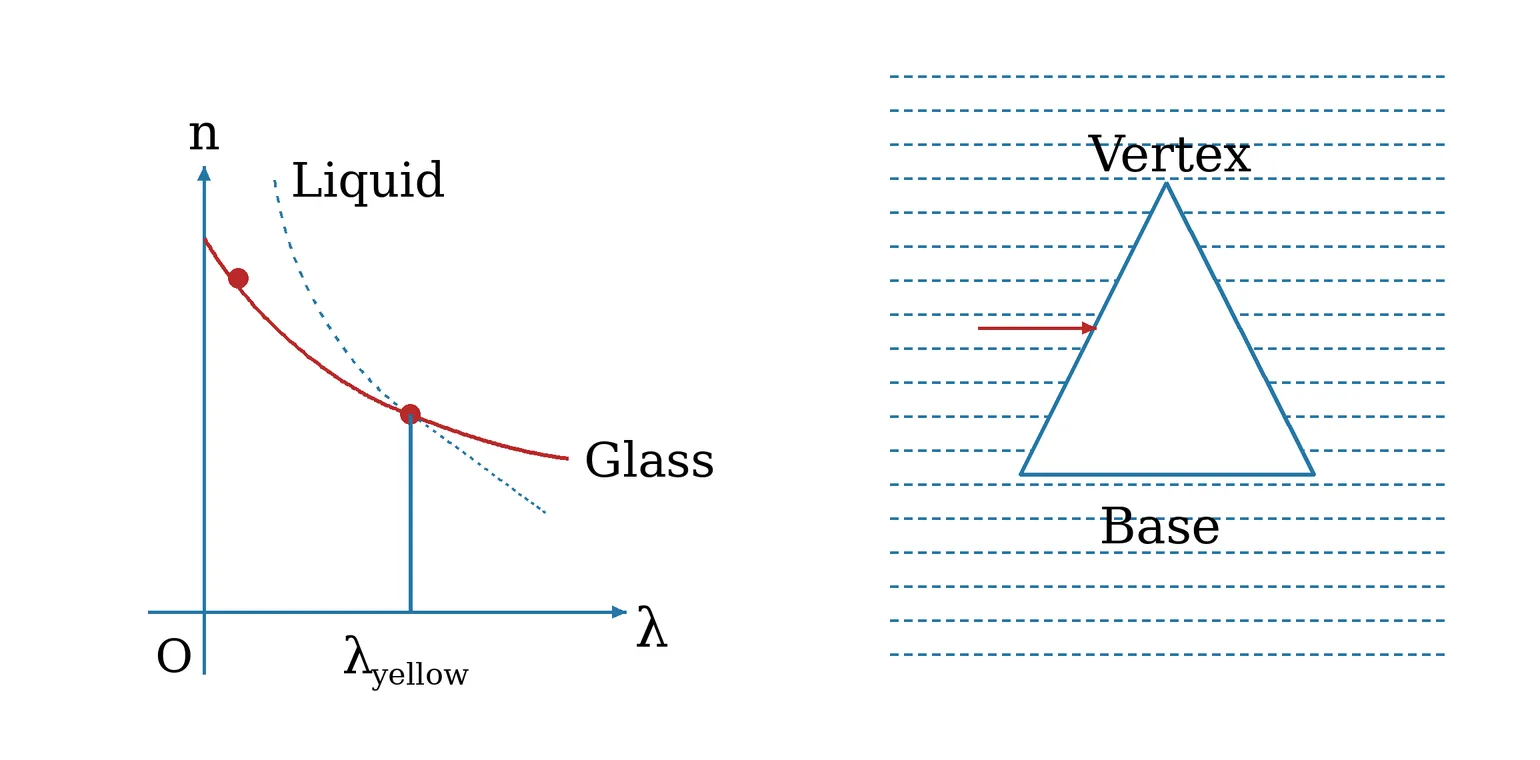

A glass prism is immersed in a hypothetical liquid. The curves showing the refractive index n as a function of wavelength λ for glass and liquid are as shown in the figure. When a ray of white light is incident on the prism parallel to the base :

Question

G1 Physics · Accepted Answer

Derived solution: Step 1: For a prism use r₁ + r₂ = A and δ = i + e - A. At minimum deviation i = e and r₁ = r₂ = A/2, so μ = sin[(A + δₘ)/2]/sin(A/2). Step 2: Test each statement independently using these relations and the data/figure. Step 3: The statements that satisfy the required optical conditions are A: yellow ray travels without deviation; B: blue ray is deviated towards the vertex; C: red ray is deviated towards the base. Hence the correct answer is A,B,C.
