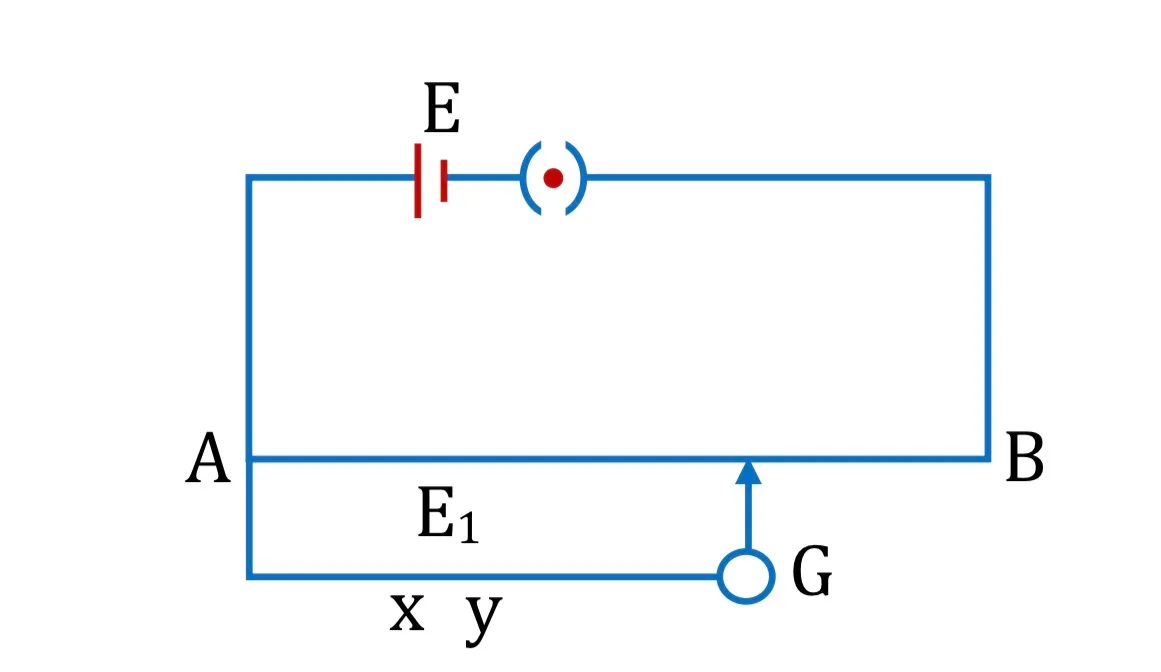

In a potentiometer experiment the galvanometer deflection remains one-sided. In case (i) the deflection decreases as the jockey moves from A to B; in case (ii) it increases. Answer the following.
Physics · Current electricity · Electrical Instruments: Galvanometer, Ammeter, Voltmeter & Potentiometer
In a potentiometer experiment the galvanometer deflection remains one-sided. In case (i) the deflection decreases as the jockey moves from A to B; in case (ii) it increases. Answer the following.
Sub-question 1
In case (i), which terminal of E₁ is connected at X and how is E₁ related to E?
Options
Sub-question 2
In case (ii), which terminal of E₁ is connected at X?
Options
