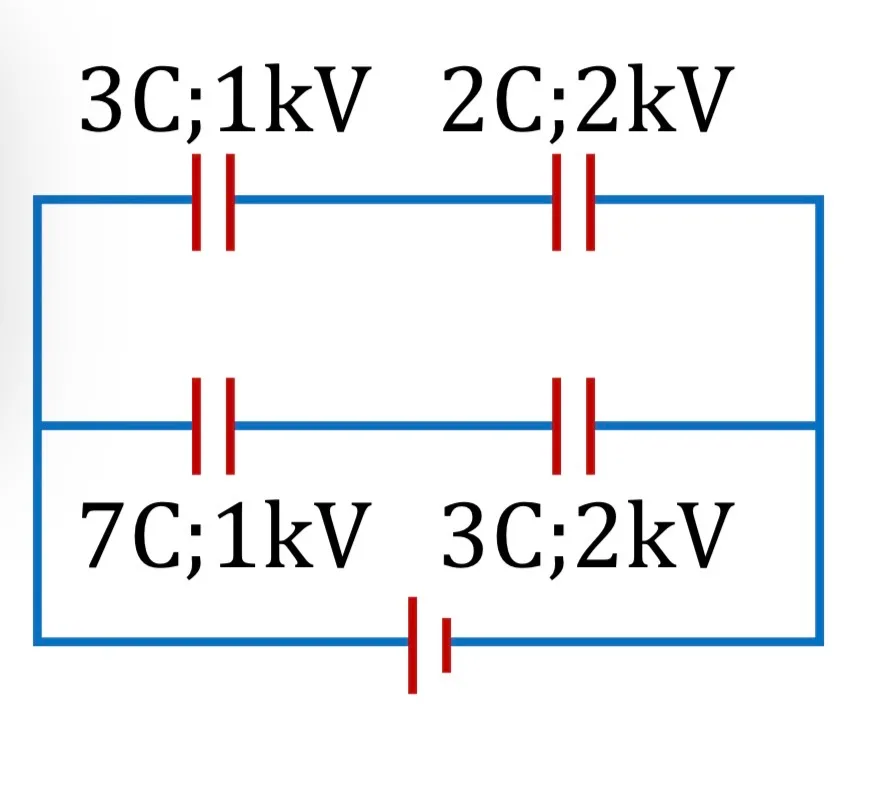

The diagram shows four capacitors with capacitances and break down voltages as mentioned. What should be the maximum value of the external emf source such that no capacitor breaks down?

Question

G1 Physics · Accepted Answer

Use Q = CV, U = ½CV² and C = εA/d; reduce the capacitor network by series/parallel combination and apply charge conservation where a node is isolated. Substituting the given values gives 2500.
