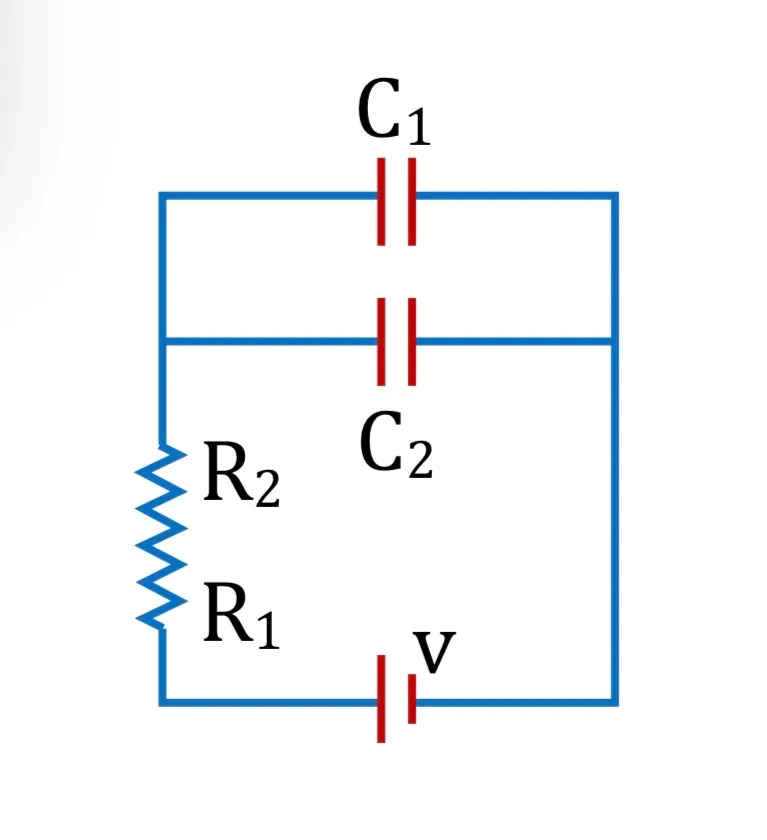

Given R₁ = 1 Ω, R₂ = 2 Ω, C₁ = 2 µF, C₂ = 4 µF. The time constants (in µS) for the circuits is :-

Question

G1 Physics · Accepted Answer

Use the RC relation q = CE(1- e ( − t / τ ) ) e^(-t/τ)) e ( − t / τ )) or q = q₀ e ( − t / τ ) , e^(-t/τ), e ( − t / τ ) , with τ = R(th)C. Substituting the given values gives 18.
