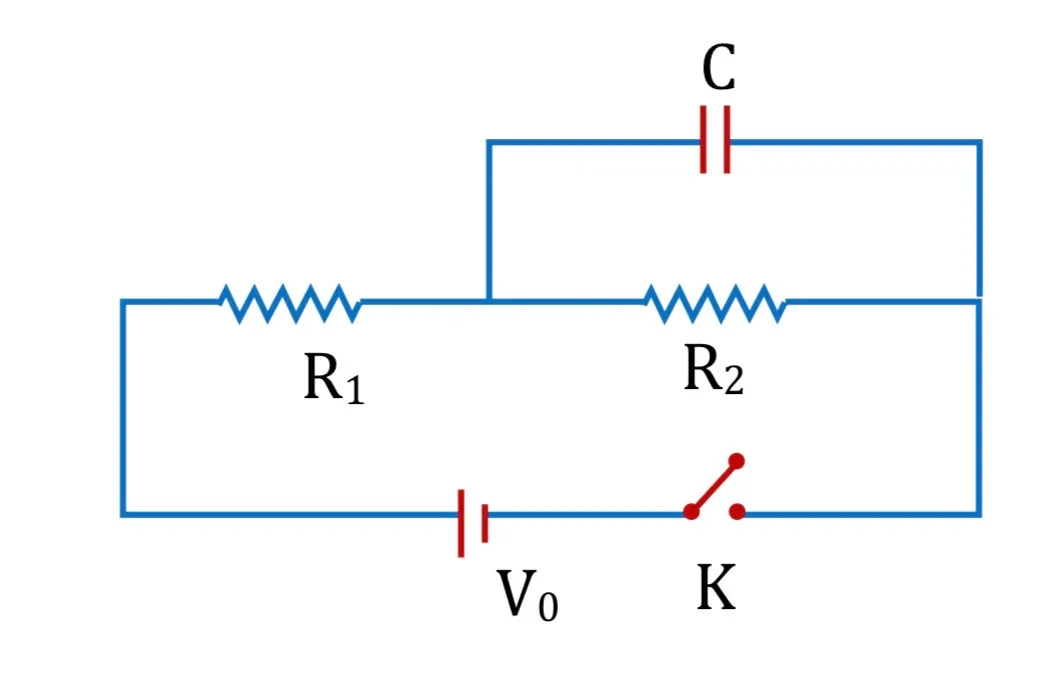

In the connection shown in the figure the switch K is open and the capacitor is uncharged. Then we close the switch and let the capacitor charge up to the maximum and open the switch again. Then (Use the following data : V₀ = 30 V, R₁ = 10 kΩ, R₂ = 5 kΩ) (i) the current through R₁ be I₁ immediately after closing the switch. (ii) the current through R₂ be I₂ a long time after the switch was closed. (iii) the current through R₂ be I₃ immediately after reopening the switch. I V₀ K Find the value of 1 (in ampere-1).
Physics · Capacitor
In the connection shown in the figure the switch K is open and the capacitor is uncharged. Then we close the switch and let the capacitor charge up to the maximum and open the switch again. Then (Use the following data : V₀ = 30 V, R₁ = 10 kΩ, R₂ = 5 kΩ) (i) the current through R₁ be I₁ immediately after closing the switch. (ii) the current through R₂ be I₂ a long time after the switch was closed. (iii) the current through R₂ be I₃ immediately after reopening the switch. I V₀ K Find the value of 1 (in ampere-1).
