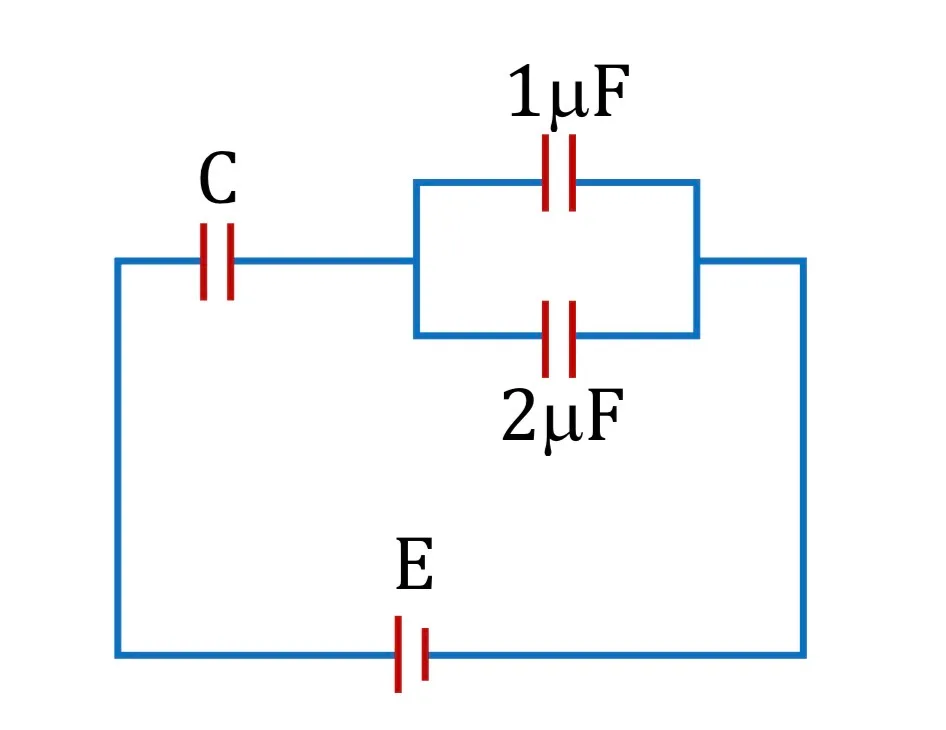

In the given circuit, charge Q₂ on the 2µF capacitor changes as C is varied from 1µF to 3µF. Q₂ as a function of 'C' is given properly by : (figures are drawn schematically and are not to scale):
Physics · Capacitor
In the given circuit, charge Q₂ on the 2µF capacitor changes as C is varied from 1µF to 3µF. Q₂ as a function of 'C' is given properly by : (figures are drawn schematically and are not to scale):

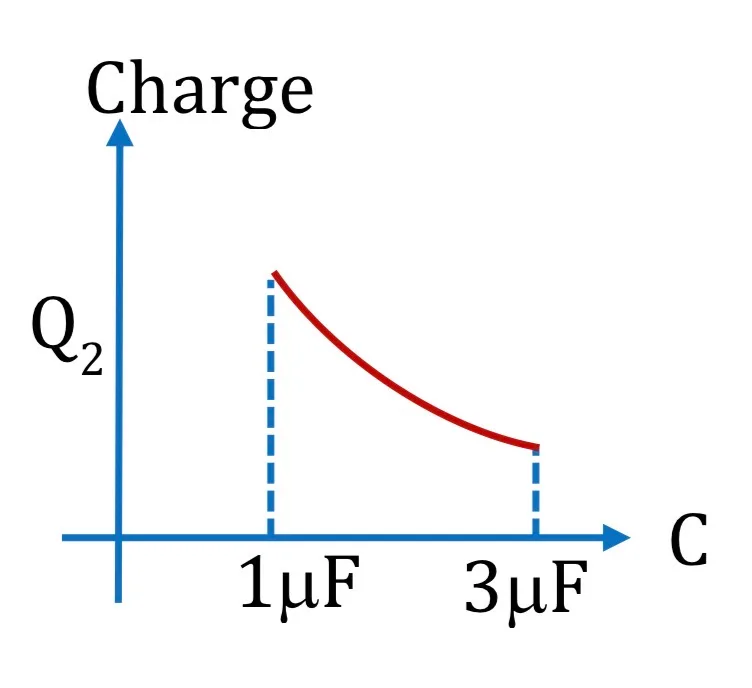

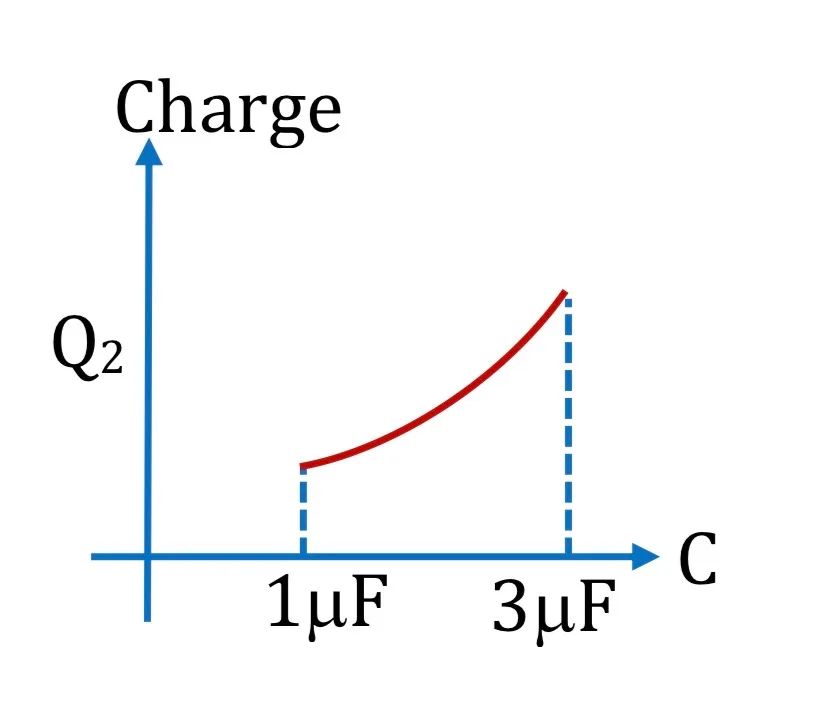

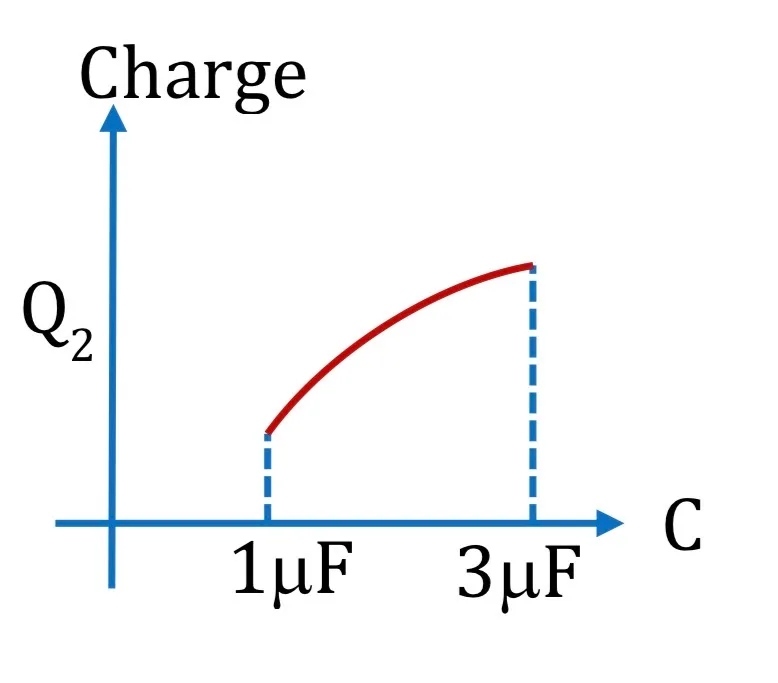

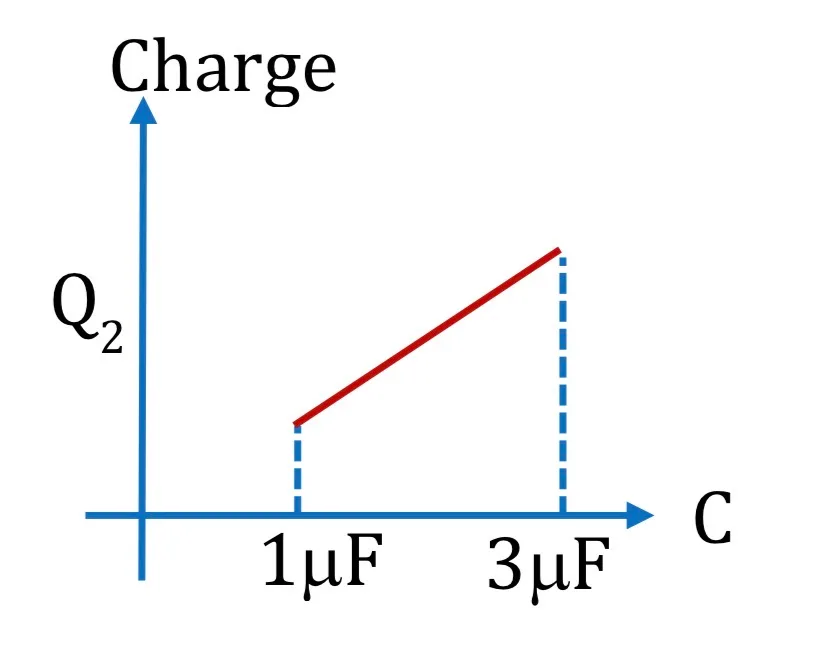

Options
