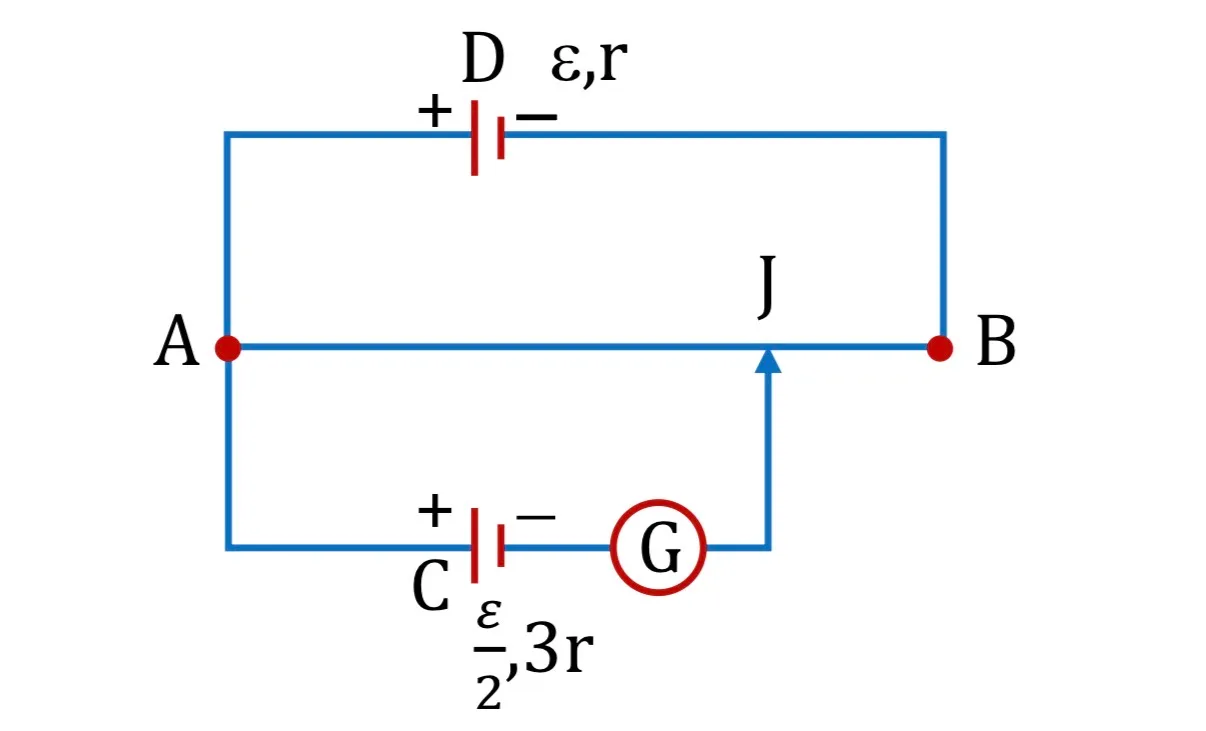

A potentiometer wire AB having length L and resistance 12 r is joined to a cell D of emf ε and internal resistance r. A cell C having emf ε/2 and internal resistance 3r is connected. The length AJ at which the galvanometer as shown in fig. shows no deflection is :
Physics · Current electricity · Electrical Instruments: Galvanometer, Ammeter, Voltmeter & Potentiometer
A potentiometer wire AB having length L and resistance 12 r is joined to a cell D of emf ε and internal resistance r. A cell C having emf ε/2 and internal resistance 3r is connected. The length AJ at which the galvanometer as shown in fig. shows no deflection is :
