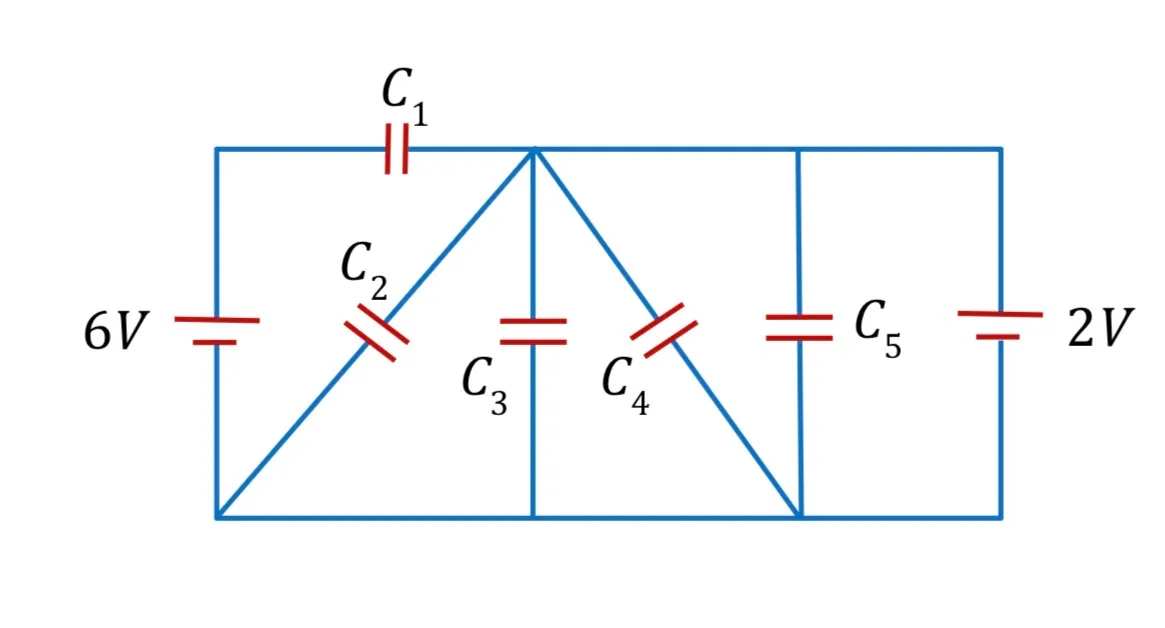

In the shown circuit, C₁ = 12 µF, C₂ = C₃ = 4 µF and C₄ = C₅ = 2 µF. Find the charge stored on C₃, in µC.

Question

G1 Physics · Accepted Answer

Use node-potential equality and Q = CV for the capacitor network shown. Solving the floating-node charge-balance equations gives the charge on C₃ as 8 µC.
