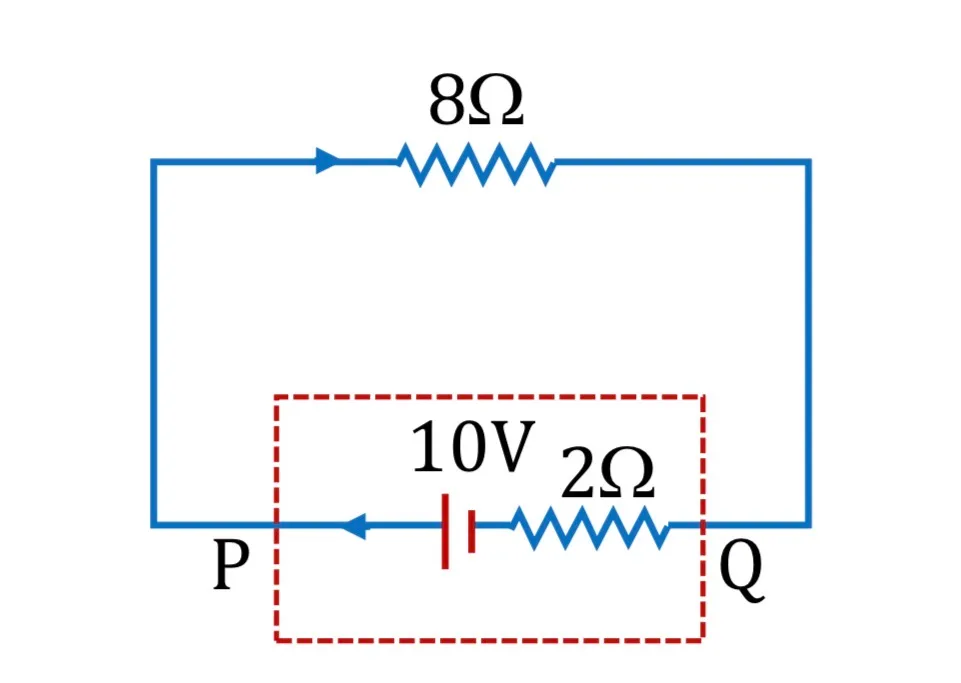

A battery of emf 10 volt and internal resistance 2Ω is connected to an external resistance 8Ω as shown in the figure :-

Select all that apply

• Option A

  Work done due to conservative electric field while a unit positive charge passes through battery from Q to P (along the arrow) is 8 Joule.

• Option B

  Work done due to conservative electric field while a unit positive charge passes through battery from Q to P (along the arrow) is - 8 Joule.

• Option C

  Work done due to conservative electric field while a unit positive charge passes through 8Ω along the arrow is -8 Joule.

• Option D

  Work done due to non conservative electric field while a unit positive charge moves from Q to P (along the arrow) is 10 Joule.
