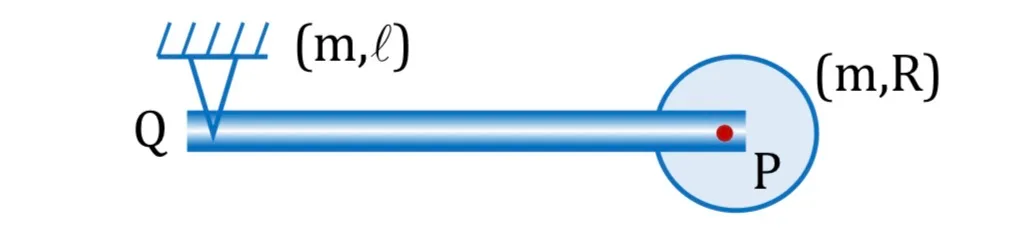

A rod is connected with the (rigid body) disc at centre of disc point 'P'. The disc can freely rotate about point P where it is hinged with rod and rod can rotate freely about fixed hinge Q. Now whole arrangement is released from horizontal position as shown in the diagram.

Question

G1 Physics · Accepted Answer

Write translation ΣF=Ma and rotation Στ about CM=I about CMα, together with the no-slip relation v of CM=ωR and a of CM=αR whenever pure rolling applies. Solving the equations for the shown geometry gives A: Initial angular acceleration of disc = 0; C: Angular speed of disc when rod becomes vertical = 0.
