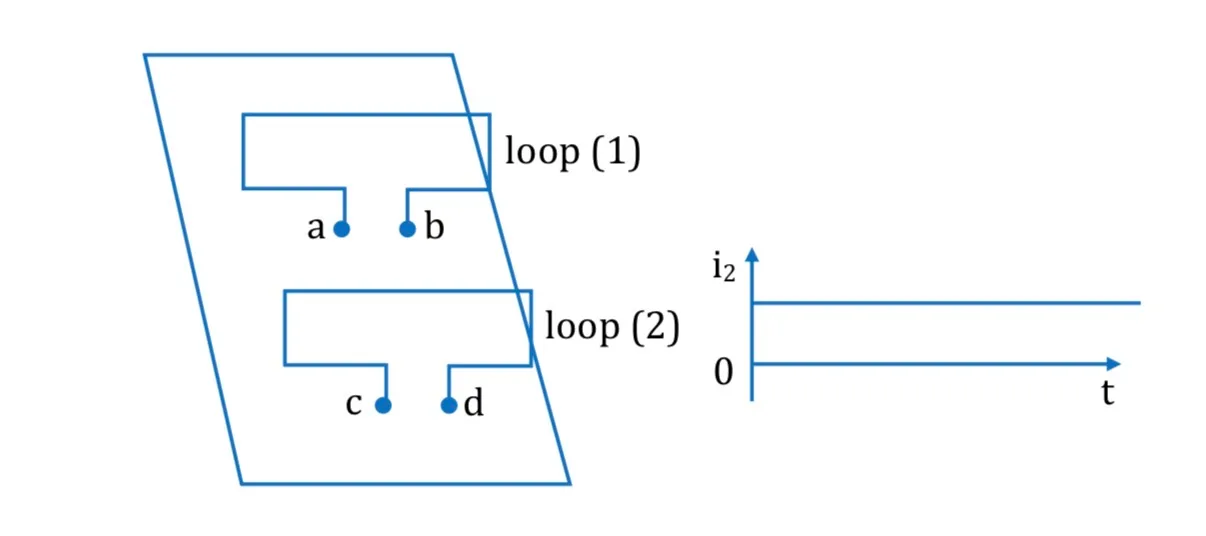

Current i₁ can flow in either direction in loop (1), producing induced current i₂ in loop (2). Positive i₁ is from a to b and positive i₂ is from c to d. The given graph shows i₂ versus time. Which i₁–t graph(s) could produce it?

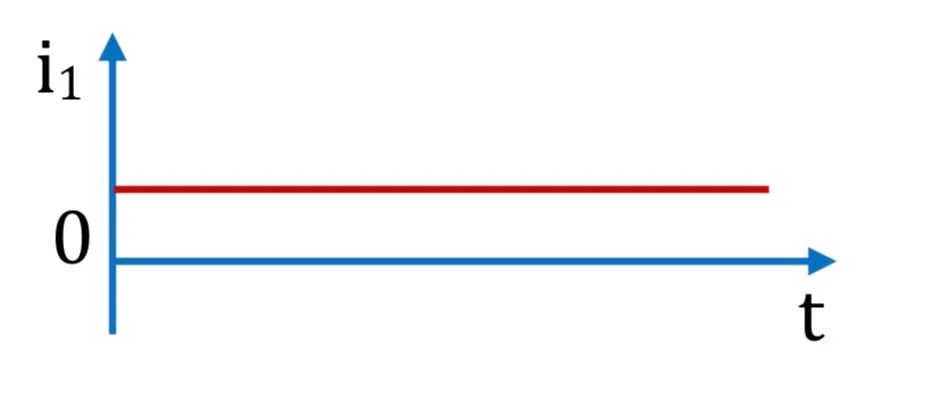

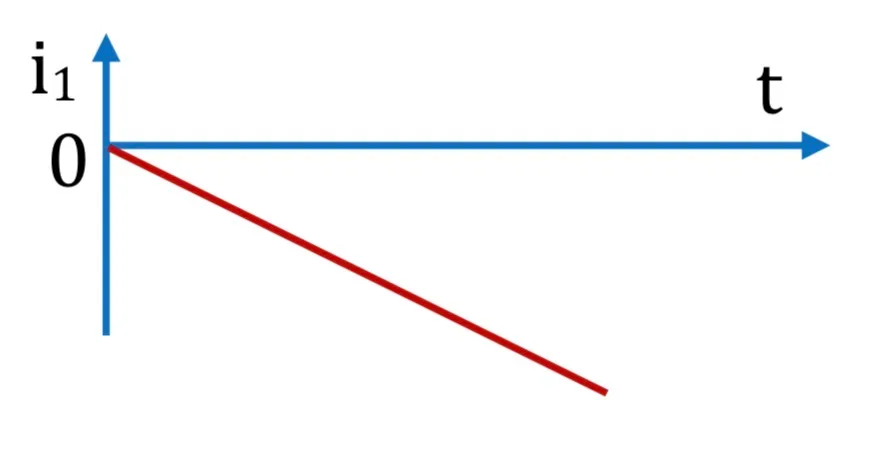

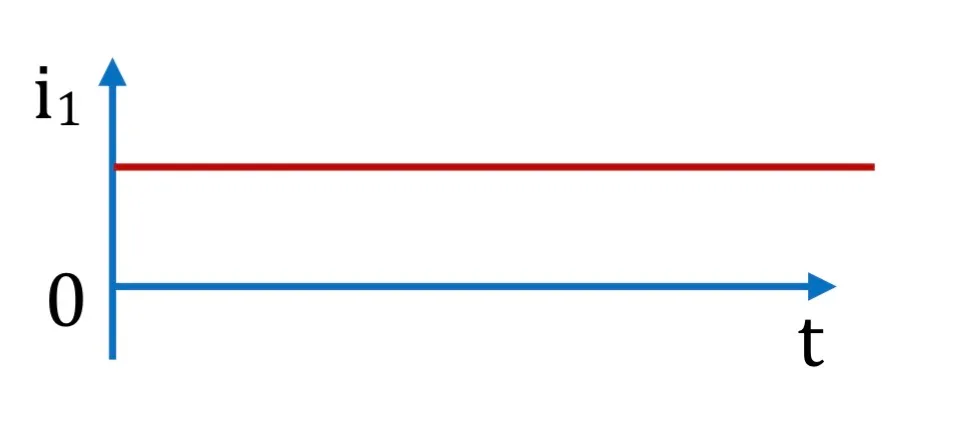

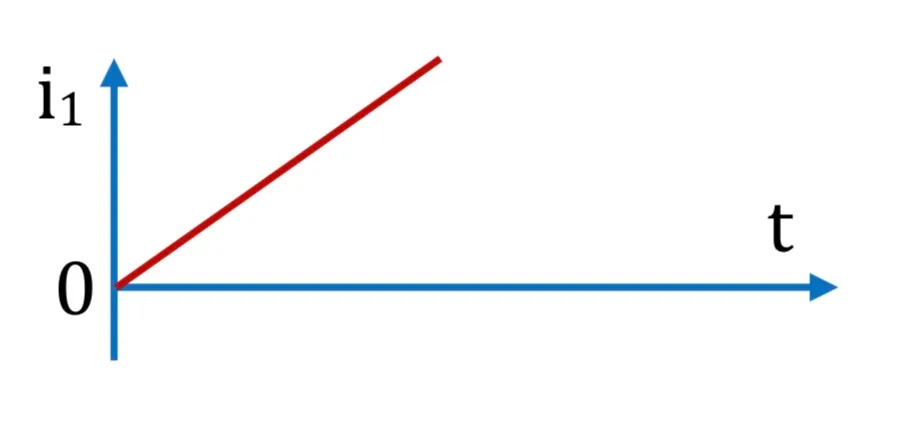

Options
Current i₁ can flow in either direction in loop (1), producing induced current i₂ in loop (2). Positive i₁ is from a to b and positive i₂ is from c to d. The given graph shows i₂ versus time. Which i₁–t graph(s) could produce it?
Options
