A uniform but time variant magnetic field exists in a cylindrical region directed along the axis of cylinder of radius R. The graph of induced electric field at a given time v/s ‘r’ is (r = distance from axis)

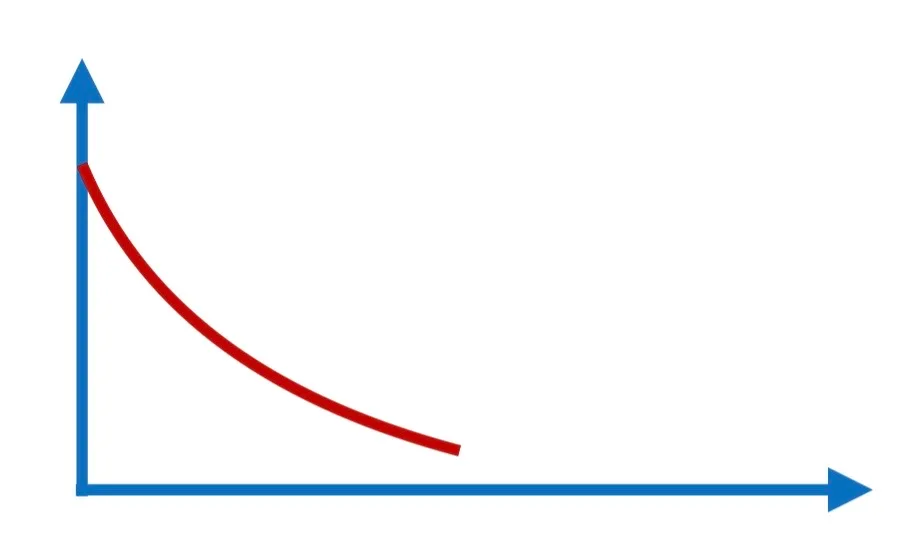

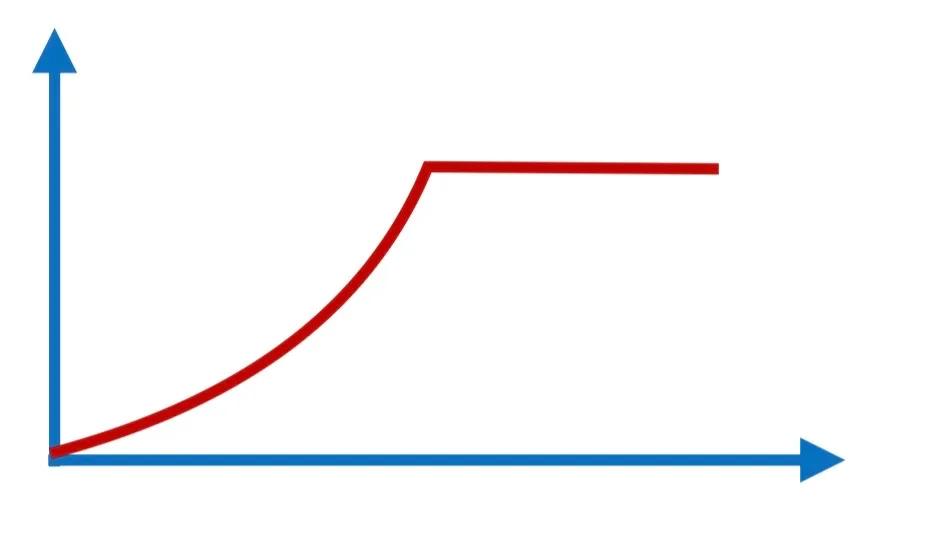

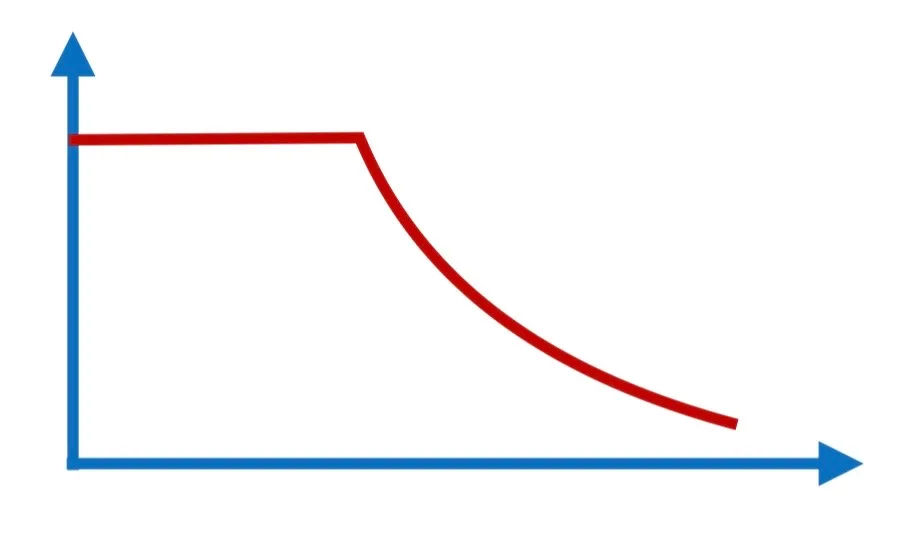

Options

Question

A uniform but time variant magnetic field exists in a cylindrical region directed along the axis of cylinder of radius R. The graph of induced electric field at a given time v/s ‘r’ is (r = distance from axis)

Options

G1 Physics · Accepted Answer

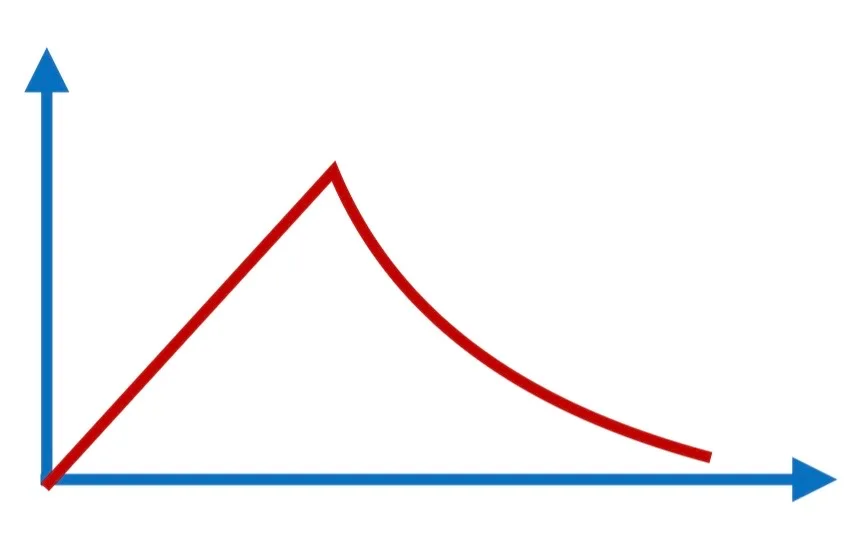

For cylindrical symmetry, Faraday’s law gives E(2πr)=|dΦ/dt|. Thus E∝r inside the field region and E∝1/r outside. The matching graph is Image 1.
