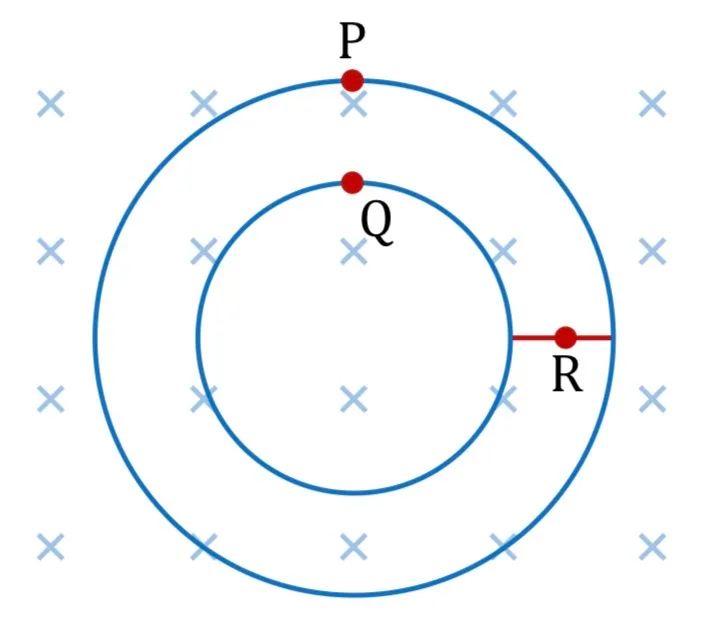

Figure shows plane figure made of a conductor located in a magnetic field along the inward normal to the plane of the figure. The magnetic field starts diminishing. Then the induced current

Question

G1 Physics · Accepted Answer

Magnetic flux is Φ=∫B⃗·dA⃗ and induced emf is ε=-dΦ/dt. Apply Lenz’s law for direction and I=ε/R when the circuit is resistive. This gives A: at point P is clockwise; C: at point Q is clockwise; D: at point R is zero.
