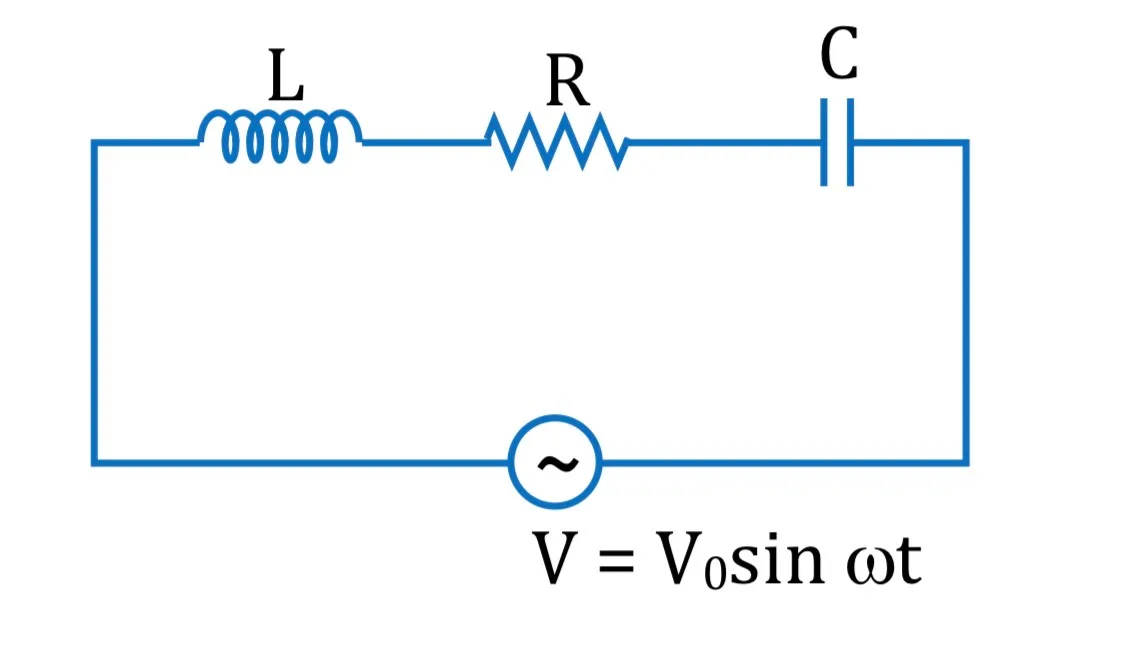

An ideal inductor L=100 mH, capacitor C=10 µF and resistor R=100 Ω are connected in series to V=5 sin(500t) V, as shown. Choose the correct statements.

Select all that apply

• Option A

  The circuit is in resonance for the given value of L, C, R and ω.

• Option B

  When number of turns in solenoid is doubled keeping other parameters unchanged, circuit is in resonance.

• Option C

  When a dielectric of dielectric constant 4 is inserted in the capacitor and other parameters are kept unchanged, the circuit is in resonance.

• Option D

  Maximum current that can flow in the circuit for given value of L, C, R and ω is 0.05 A.
