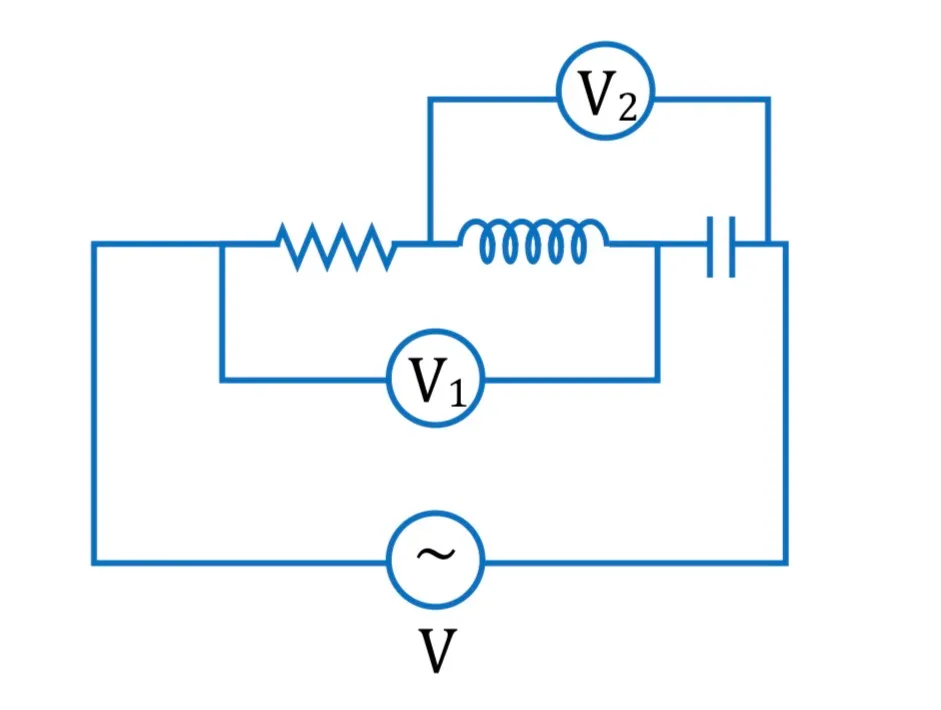

In a series RLC circuit, voltmeters V₁ and V₂ read 100 V and 120 V respectively, while source voltage is 130 V. Select the correct statements.

Question

G1 Physics · Accepted Answer

Use Xₗ=ωL, X꜀=1/(ωC), Z=√[R²+(Xₗ-X꜀)²] and Iᵣₘₛ=Vᵣₘₛ/Z. The circuit condition gives A: Voltage across resistor, inductor and capacitor are V₂ 50V, 50 3V and 120 + 50 3 V , respectively; C: Power factor of the circuit is ~ 13 V; D: The circuit is capacitive in nature EMI and AC.
