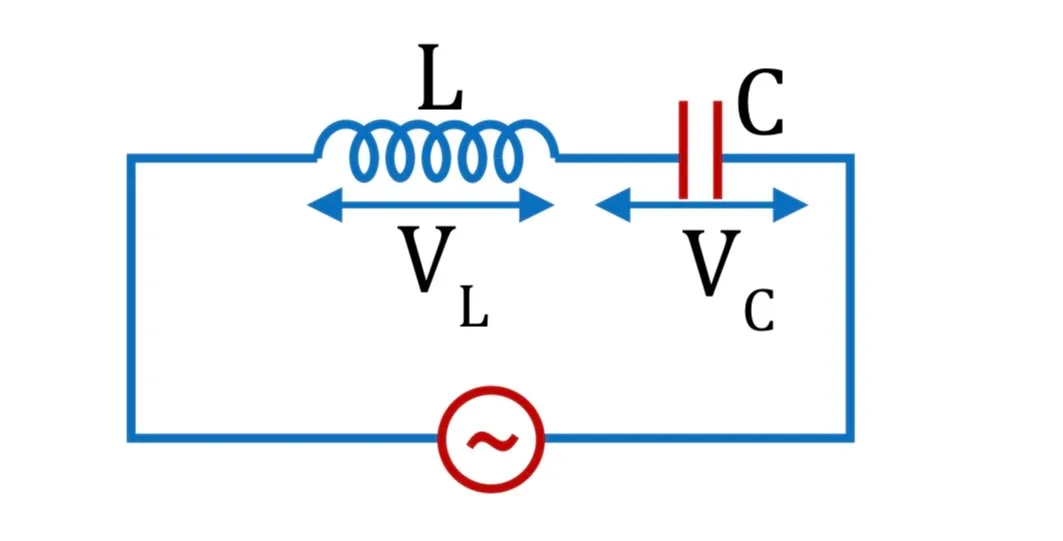

In the shown series LC circuit, which phasor diagram correctly represents current I, inductor voltage Vₗ and capacitor voltage V꜀?
Physics · AC Circuits
In the shown series LC circuit, which phasor diagram correctly represents current I, inductor voltage Vₗ and capacitor voltage V꜀?

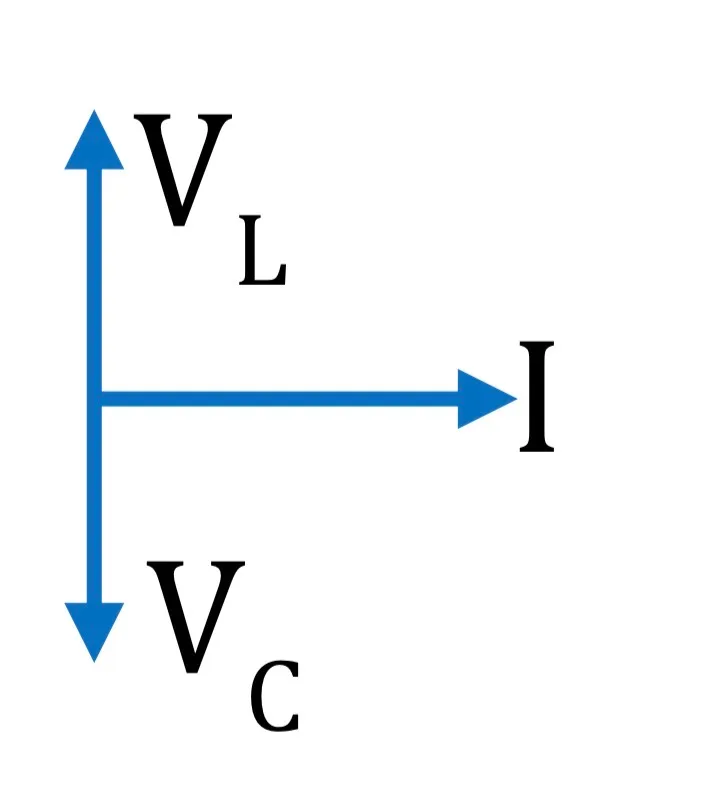

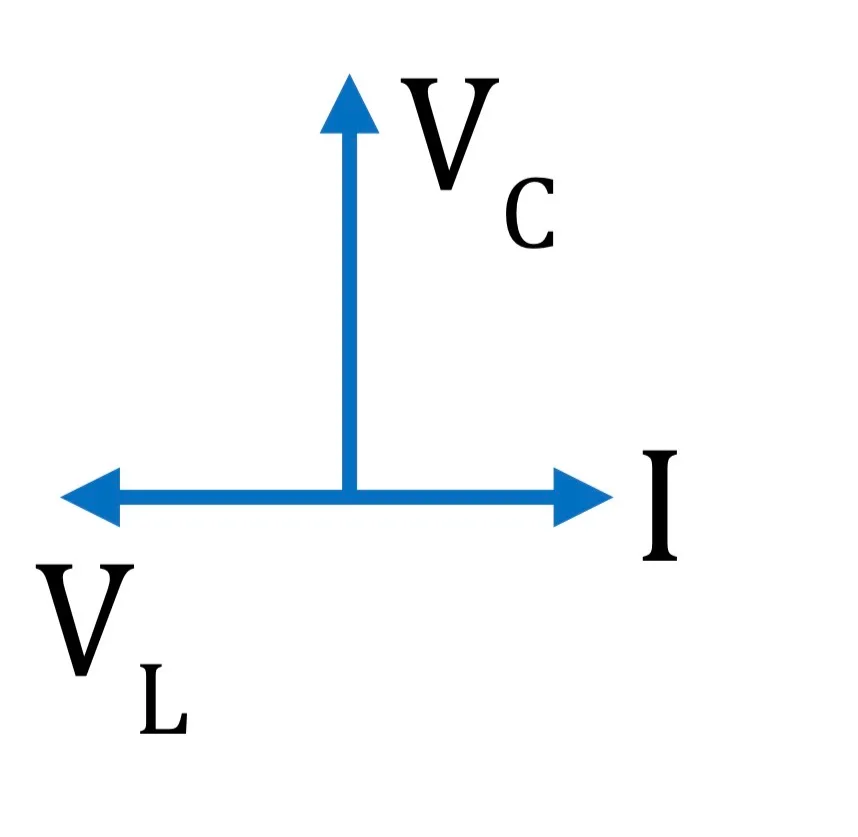

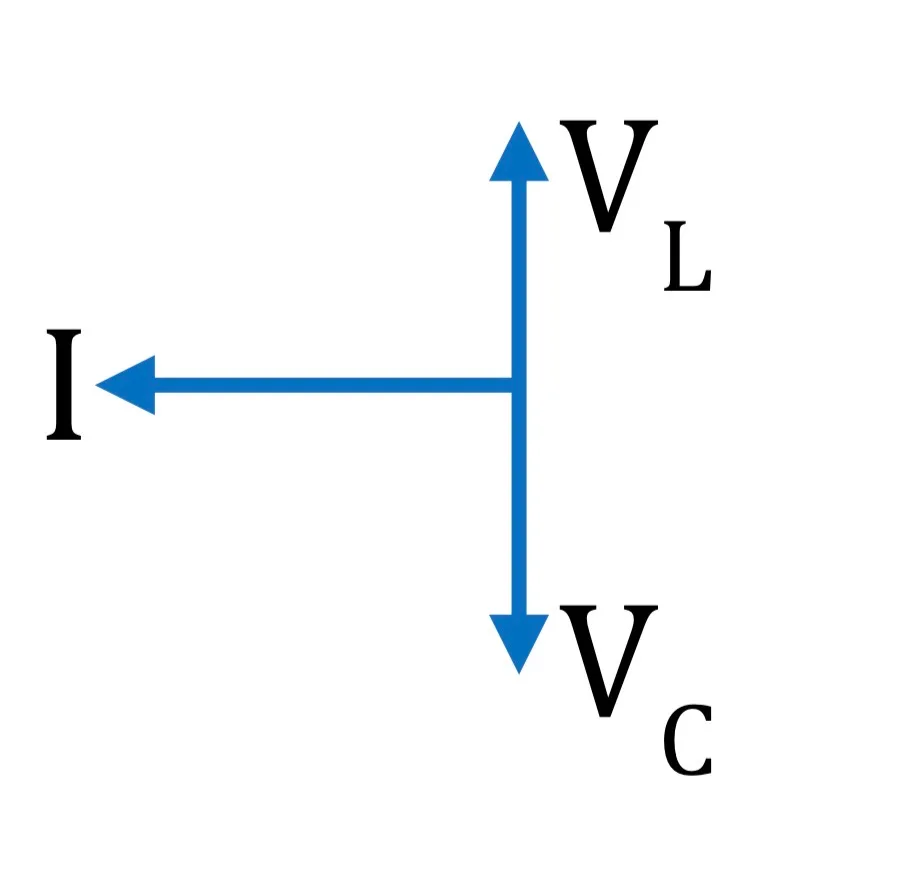

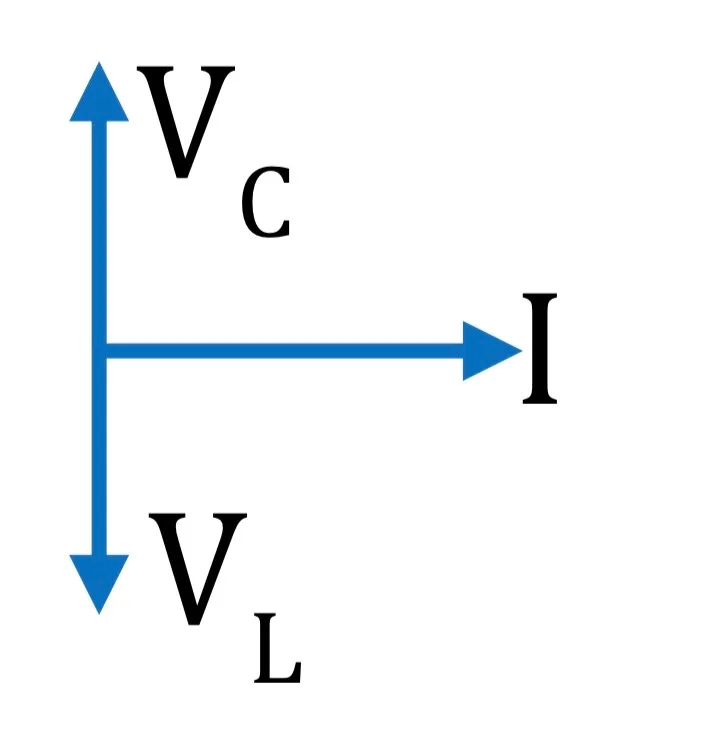

Options
