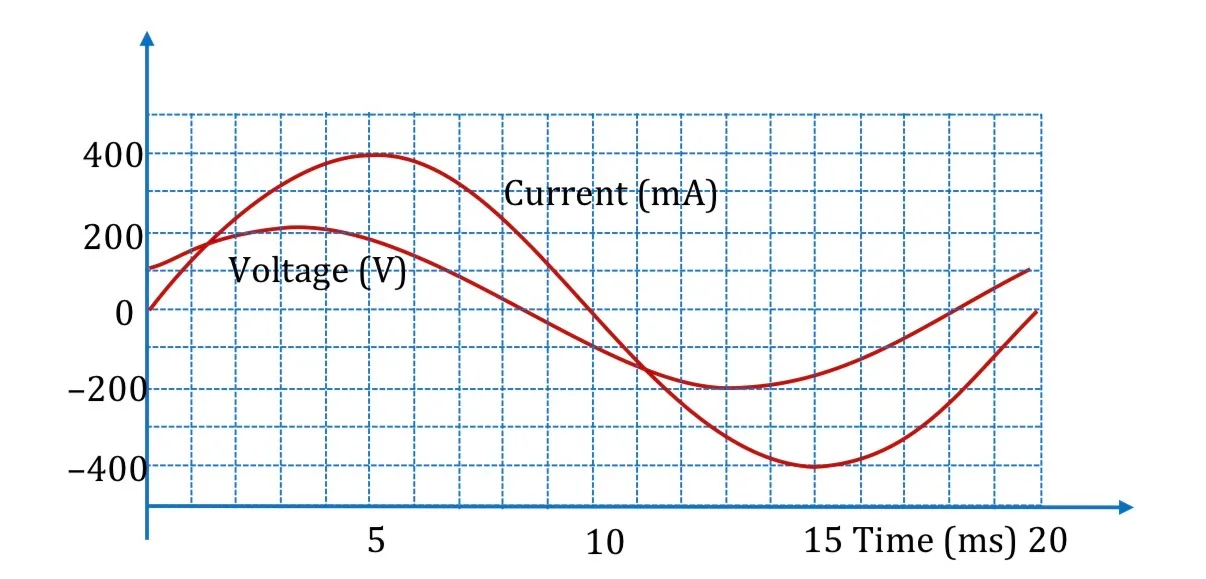

The graph shows source voltage and steady-state current versus time for a series RLC circuit. Select the correct statements.

Question

G1 Physics · Accepted Answer

Use Xₗ=ωL, X꜀=1/(ωC), Z=√[R²+(Xₗ-X꜀)²] and Iᵣₘₛ=Vᵣₘₛ/Z. The circuit condition gives A: Current lags the voltage.; B: Resistance in the circuit is 250 3 Ω.; C: Reactance in the circuit is 250Ω.; D: Average power dissipation in the circuit is 20 3 W..
