Column-I shows four modifications of a standard YDSE setup. Match each modification with all applicable characteristics in Column-II.

Physics · Wave Optics

JEE Advanced

Column-I shows four modifications of a standard YDSE setup. Match each modification with all applicable characteristics in Column-II.

List 1

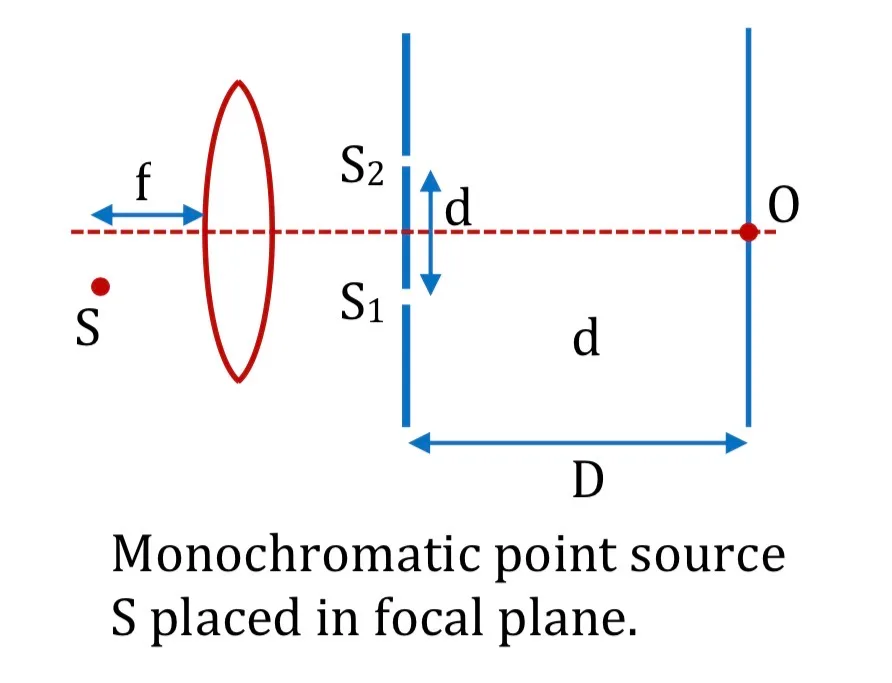

  1. (A) Point source in focal plane illuminating the slits through a lens

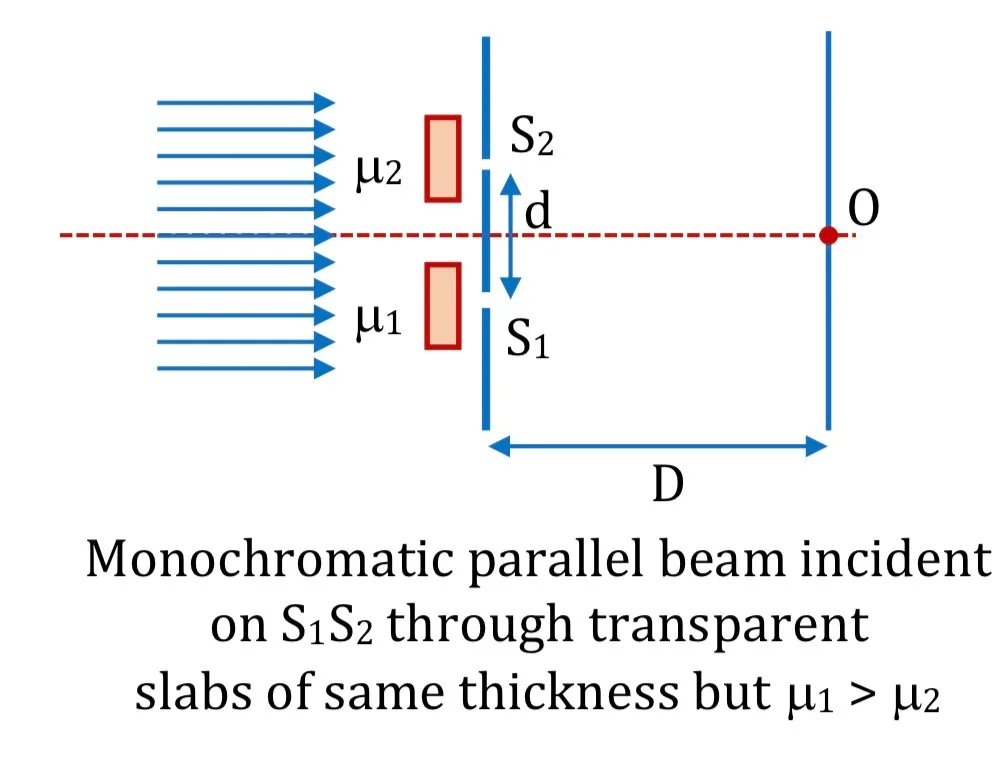

  2. (B) Equal-thickness slabs with μ₁>μ₂ before S₁ and S₂

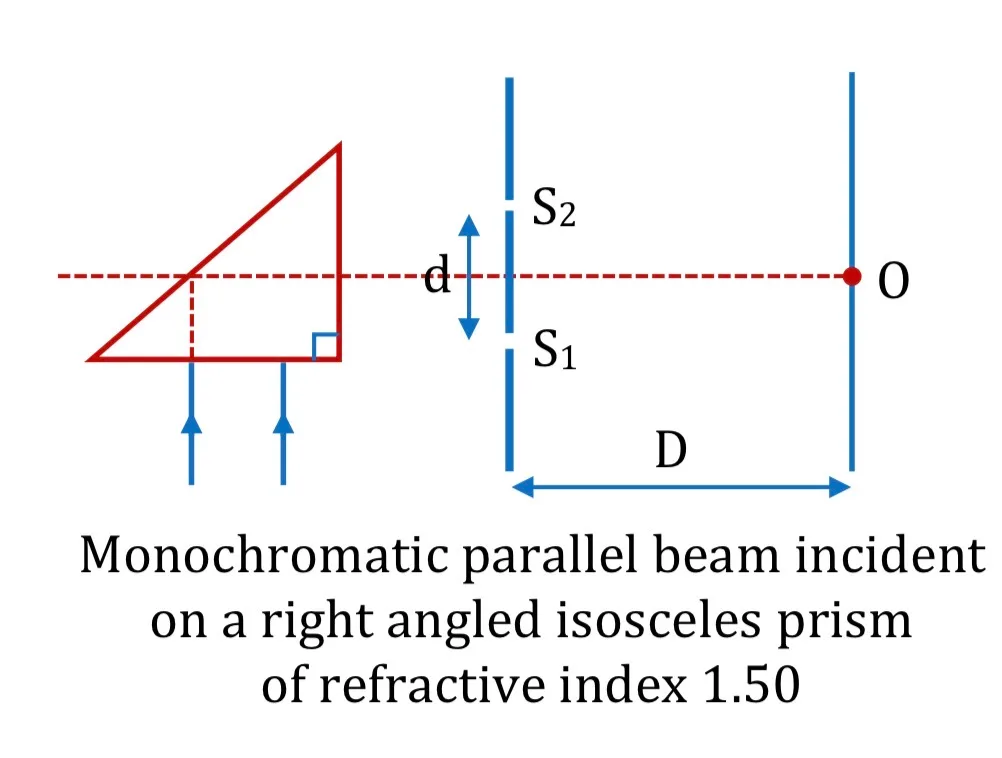

  3. (C) Parallel beam through a right-angled isosceles prism (n=1.50)

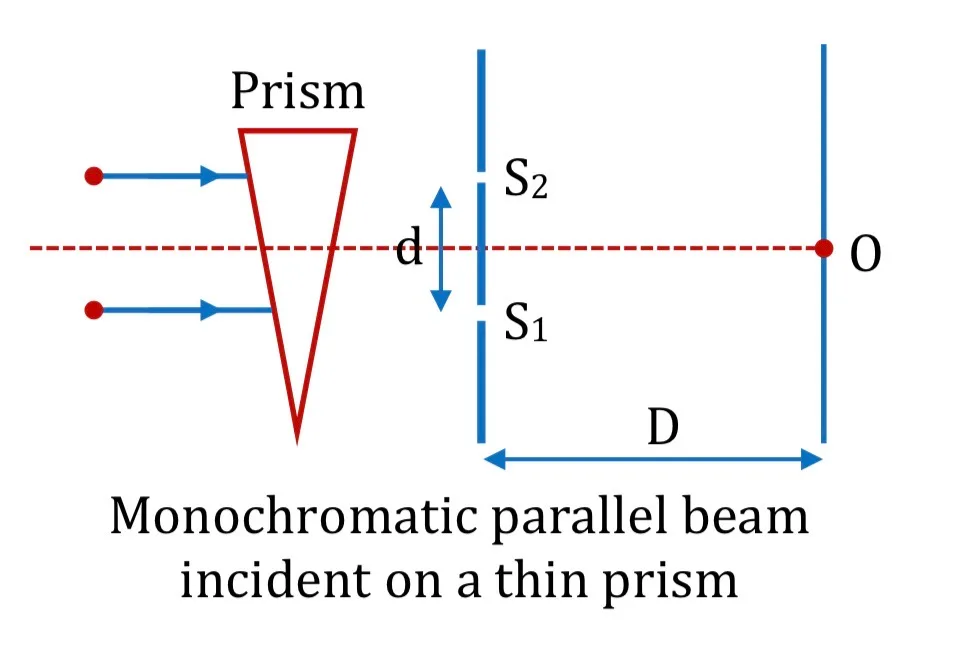

  4. (D) Parallel beam through a thin prism

  5. .

List 2

  1. (P) Zero-order maximum lies above O

  2. (Q) A mica sheet before S₂ can restore central bright at O

  3. (R) Fringe width β=λD/d

  4. (S) Point O can be a minimum

  5. (T) Point O can be the least-order minimum

Options
