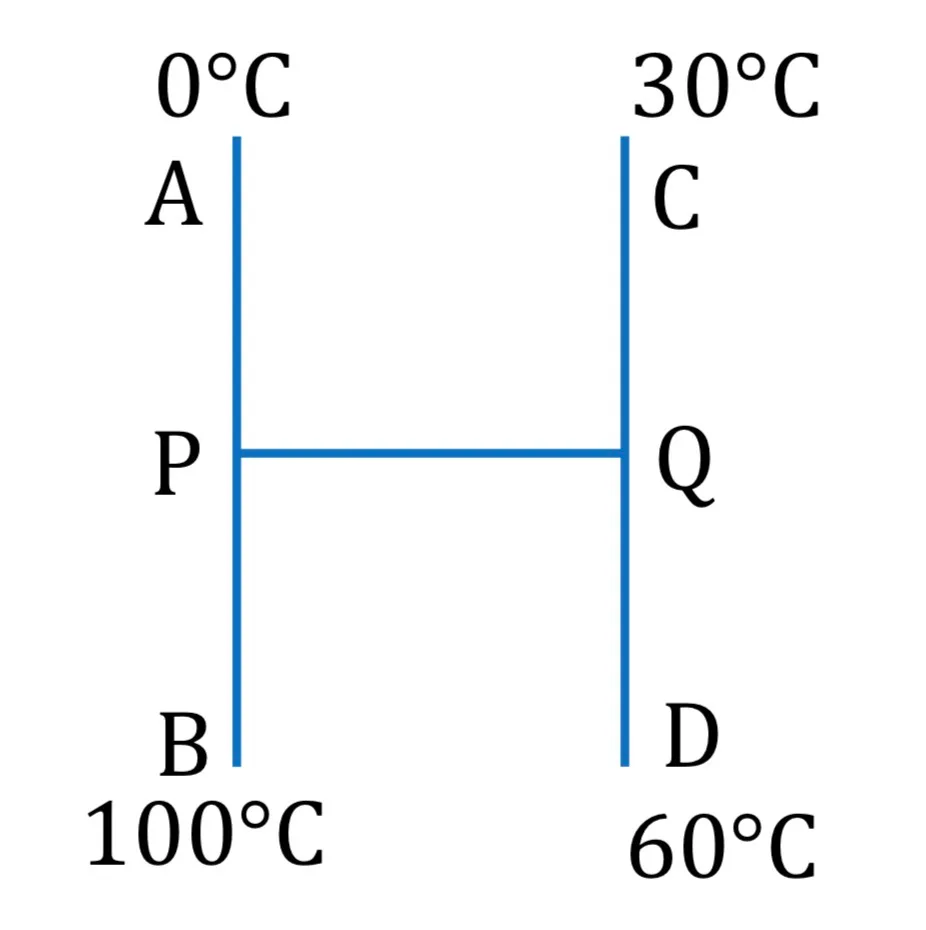

Three identical rods AB, CD and PQ are joined as shown. P and Q are mid points of AB and CD respectively. Ends A, B, C and D are maintained at 0°C, 100°C, 30°C and 60°C respectively. The direction of heat flow in PQ is

Question

G1 Physics · Accepted Answer

In steady conduction, heat current is H=kAΔT/L. Treat each segment as a thermal resistance Rₜₕ=L/(kA); series resistances add and parallel heat currents add. Evaluating the given data/statements gives A: from P to Q. Therefore the correct answer is A.
