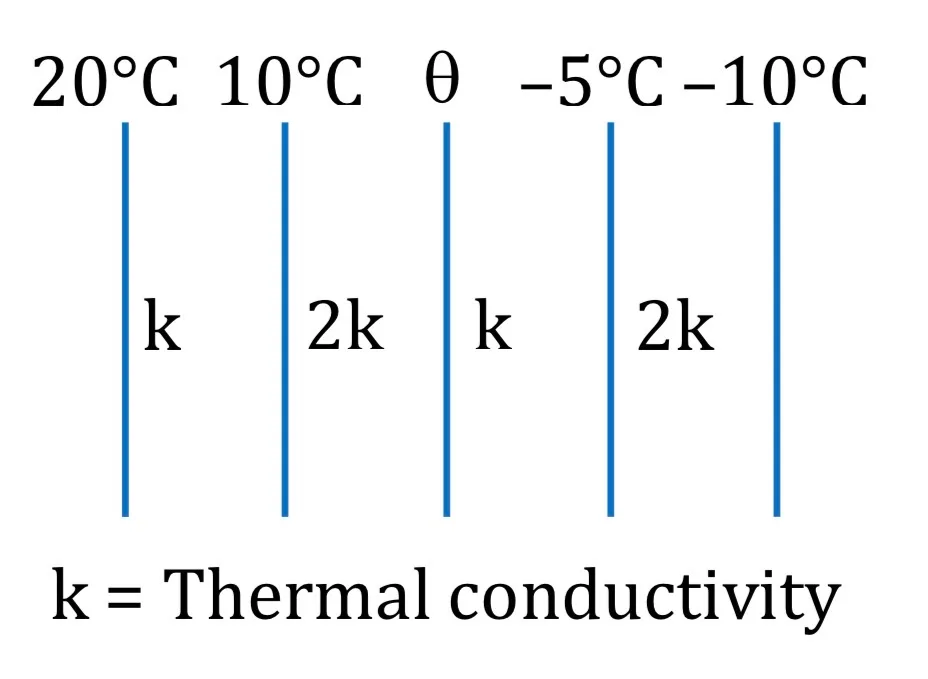

The figure shows the face and interface temperature of a composite slab containing of four layers of two materials having identical thickness. Under steady state condition, find the value of temperature θ

Question

G1 Physics · Accepted Answer

In steady conduction, heat current is H=kAΔT/L. Treat each segment as a thermal resistance Rₜₕ=L/(kA); series resistances add and parallel heat currents add. Substituting the given values gives 5.
