JEE Advanced 2017 physics questions with solutions

Showing 1–10 of 22 questions

• Multi-correctdifficultGeometrical opticsprism and thin prism

  For an isosceles prism of angle A and refractive index μ, it is found that the angle of minimum deviation δₘ = A. Which of the following options is/are correct?

  Select all that apply

  • Option A

    At minimum deviation, the incident angle i₁ and refracting angle r₁ satisfy r₁ = i₁/2.

  • Option B

    For this prism, A = (1/2) cos⁻¹(μ/2).

  • Option C

    The emergent ray is tangential at the second surface when i₁ = sin⁻¹[sin A √(4 cos²(A/2) - 1) - cos A].

  • Option D

    For i₁ = A, the ray inside the prism is parallel to the base.

  Check answerShow answer

  JEE Advanced 2017

  Open question & full solution →
• Multi-correctmediumAC Circuits

  The instantaneous voltages at three terminals marked X, Y and Z are given by: Vₓ=V₀ sinωt, Vᵧ=V₀ sin(ωt+2π/3), and V𝓏=V₀ sin(ωt+4π/3). An ideal AC voltmeter reads rms potential difference. It is connected between X-Y and then Y-Z. Select the correct statements.

  Select all that apply

  • Option A

    Vₓᵧʳᵐˢ=V₀

  • Option B

    Vᵧ𝓏ʳᵐˢ=V₀√(1/2)

  • Option C

    The reading is independent of the chosen pair of terminals

  • Option D

    Vₓᵧʳᵐˢ=V₀√(3/2)

  Check answerShow answer

  JEE Advanced 2017

  Open question & full solution →
• Multi-correctmediumThermodynamics

  A human body has surface area approximately 1 m². Its normal temperature is 10 K above room temperature T₀. Take T₀=300 K and σT₀⁴=460 W m⁻², where σ is the Stefan-Boltzmann constant. Which options are correct?

  Select all that apply

  • Option A

    The amount of energy radiated by the body in 1 second is close to 60 Joules

  • Option B

    If the surrounding temperature decreases by a small ΔT₀ << T₀, maintaining the same body temperature requires a greater radiation loss rate ΔW.

  • Option C

    Reducing the exposed surface area of the body (e. g. by curling up) allows humans to maintain the same body temperature while reducing the energy lost by radiation

  • Option D

    If the body temperature rises significantly then the peak in the spectrum of electromagnetic radiation emitted by the body would shift to longer wavelengths

  Check answerShow answer

  JEE Advanced 2017

  Open question & full solution →
• NumericeasyWave Motion

  A stationary 492 Hz source sends sound toward a large car approaching at 2 m s⁻¹. The reflected sound returns to the source and interferes with the original. Find the beat frequency. Take sound speed = 330 m s⁻¹.

  Your answer

  Check answerShow answer

  JEE Advanced 2017

  Open question & full solution →
• Multi-correctmediumThermodynamics

  A flat plate is moving normal to its plane through a gas under the action of a constant force F. The gas is kept at a very low pressure. The speed of the plate v is much less than the average speed u of the gas molecules. Which of the following options is/are true ?

  Select all that apply

  • Option A

    The resistive force experienced by the plate is proportional to v

  • Option B

    The pressure difference between the leading and trailing faces of the plate is proportional to uv.

  • Option C

    The plate will continue to move with constant non-zero acceleration, at all times

  • Option D

    At a later time the external force F balances the resistive force.

  Check answerShow answer

  JEE Advanced 2017

  Open question & full solution →
• NumericmediumProperties of solid and fluid

  A liquid drop of radius R = 10⁻² m and surface tension S = 0.1/(4π) N m⁻¹ divides into K identical drops. The total increase in surface energy is ΔU = 10⁻³ J. If K = 10^α, find α.

  Your answer

  Check answerShow answer

  JEE Advanced 2017

  Open question & full solution →
• NumericmediumAtomic Structure and X-rays

  An electron in hydrogen changes from orbit n₁ to orbit n₂. If the ratio of its potential energies is V₁/V₂ = 6.25, find the smallest possible value of n₂.

  Your answer

  Check answerShow answer

  JEE Advanced 2017

  Open question & full solution →
• Multi-correctmediumWave Optics

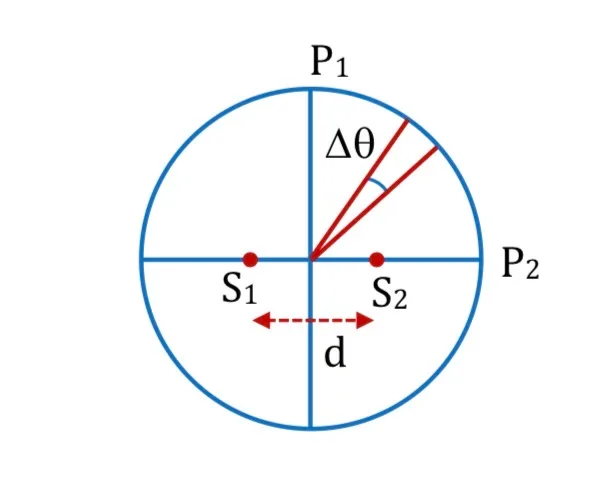

  Two coherent monochromatic point sources S₁ and S₂ of wavelength 600 nm are placed symmetrically about the centre of a circle and separated by d=1.8 mm, as shown. Interference produces bright and dark spots on the circumference. Choose the correct statements.



  Select all that apply

  • Option A

    A dark spot will be formed at the point P₂.

  • Option B

    The angular separation between two consecutive bright spots decreases as we move from P₁ to P₂ along the first quadrant.

  • Option C

    At P₂ the order of the fringe will be maximum.

  • Option D

    The total number of fringes produced between P₁ and P₂ in the first quadrant is close to 3000.

  Check answerShow answer

  JEE Advanced 2017

  Open question & full solution →
• Multi-correctmediumElectrostatic

  A point charge +Q is placed just outside an imaginary hemispherical surface of radius R as shown in the figure. Which of the following statements is/are correct ?



  Select all that apply

  • Option A

    The circumference of the flat surface is an equipotential.

  • Option B

    Flux through the curved surface is -[Q/(2ε₀)](1 - 1/√2).

  • Option C

    Total flux through the curved and flat surfaces is Q/ε₀.

  • Option D

    The normal component of electric field on the flat surface is constant.

  Check answerShow answer

  JEE Advanced 2017

  Open question & full solution →
• MCQmediumGravitationAcceleration Due to Gravity & Escape Velocity

  A rocket is launched normally from Earth's surface, away from the Sun, along the Sun-Earth line. The Sun is 3 × 10⁵ times as massive as Earth and is at a distance 2.5 × 10⁴ Earth radii. Earth's escape speed is vₑ = 11.2 km s⁻¹. Find the minimum initial speed vₛ needed to leave the Sun-Earth system.

  Options

  • Option A

    vₛ = 22 km s⁻¹

  • Option B

    vₛ = 72 km s⁻¹

  • Option C

    vₛ = 42 km s⁻¹

  • Option D

    vₛ = 62 km s⁻¹

  Check answerShow answer

  JEE Advanced 2017

  Open question & full solution →
