Free physics question bank
Shift 2 physics questions with solutions
Browse Shift 2 Physics questions with solutions. Useful for JEE, NEET, and school exam revision.
Showing 1–10 of 268 questions
- MCQmediumCurrent electricity

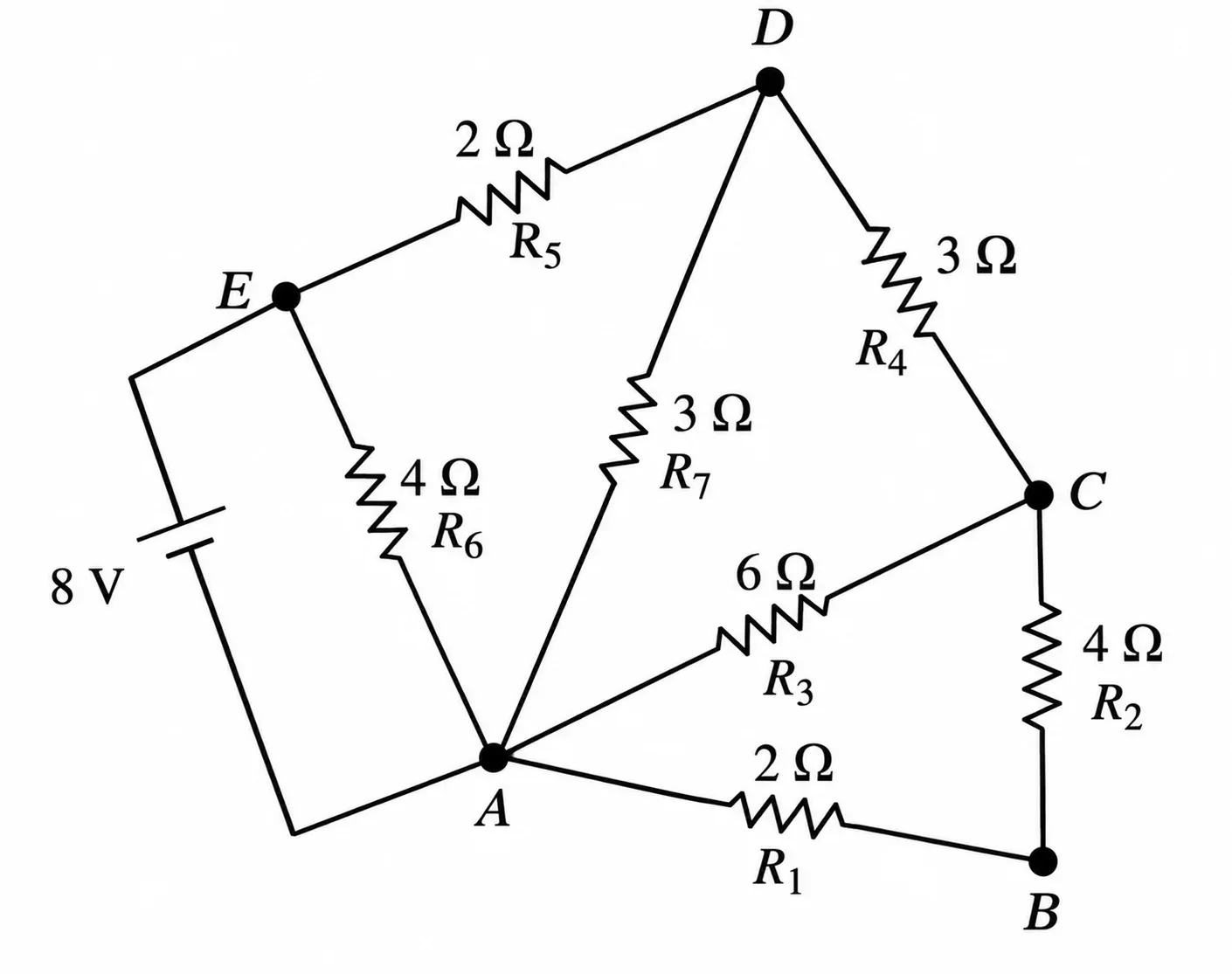

In the resistor network shown, the current through R₂ is:
Options
JEE Mains11 April 2023Shift 2Evening Shift
Open question & full solution → - NumericmediumCircular Motion
As shown in the figure, the voltmeter reads 2 V across the 5 Ω resistor. The resistance of the voltmeter is ______ Ω. Image
JEE Mains6 April 2023Shift 2Evening Shift
Open question & full solution → - MCQmediumCircular Motion
A particle starts with an initial velocity of 10.0 m s⁻¹ along x-direction and accelerates uniformly at the rate of 2.0 m s⁻². The time taken by the particle to reach the velocity of 60.0 m s⁻¹ is __________.
Options
JEE Mains6 April 2023Shift 2Evening Shift
Open question & full solution → - MCQmediumUnit dimension and error
The frequency (ν) of an oscillating liquid drop may depend upon radius (r) of the drop, density (ρ) of liquid and the surface tension (s) of the liquid as : ν = rᵃρᵇsᶜ. The values of a, b and c respectively are
Options
JEE Mains24 January 2023Shift 2Evening Shift
Open question & full solution → - MCQeasyCircular Motion
Given below are two statements: Statement I: For transmitting a signal, size of antenna l should be comparable to wavelength of signal, at least l = λ/4 in dimension. Statement II: In amplitude modulation, amplitude of carrier wave remains constant (unchanged). Choose the most appropriate answer:
Options
JEE Mains31 January 2023Shift 2Evening Shift
Open question & full solution → - NumericmediumCircular Motion
In an AC generator, a rectangular coil of 100 turns each having area 14 × 10⁻² m² is rotated at 360 rev min⁻¹ about an axis perpendicular to a uniform magnetic field of magnitude 3.0 T. The maximum value of the emf produced will be ______ V. [Take π = 22/7]
JEE Mains30 January 2023Shift 2Evening Shift
Open question & full solution → - MCQeasyCircular Motion
A person travels distance x with speed v₁ and then another equal distance x with speed v₂ in the same direction. If the average velocity is v, the correct relation is:
Options
JEE Mains10 April 2023Shift 2Evening Shift
Open question & full solution → - NumericeasyCurrent electricity
If a copper wire is stretched to increase its length by 20%. The percentage increase in resistance of the wire is __________ %.
JEE Mains24 January 2023Shift 2Evening Shift
Open question & full solution → - IntegermediumCircular Motion
A rectangular parallelepiped has dimensions 1 cm × 1 cm × 100 cm. Its resistivity is 3 × 10⁻⁷ Ω m. The resistance between the two opposite rectangular faces of area 1 cm × 100 cm is ______ × 10⁻⁷ Ω.
JEE Mains10 April 2023Shift 2Evening Shift
Open question & full solution → - NumericmediumCircular Motion
The velocity of a particle executing SHM varies with displacement x as 4v² = 50 - x². The time period of oscillations is x₀/7 s. The value of x₀ is ______. [Take π = 22/7]
JEE Mains30 January 2023Shift 2Evening Shift
Open question & full solution →
