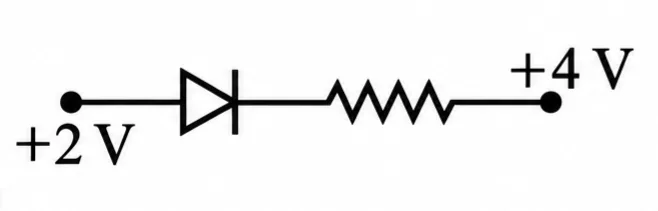

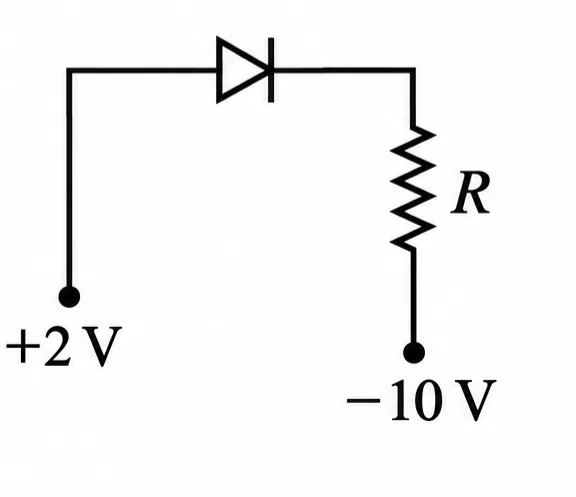

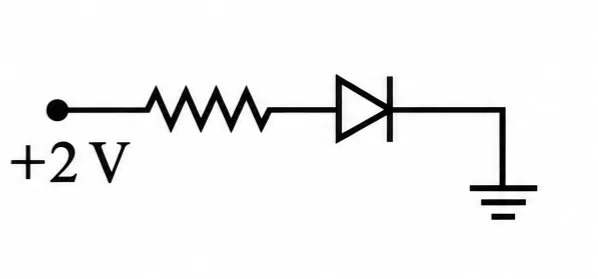

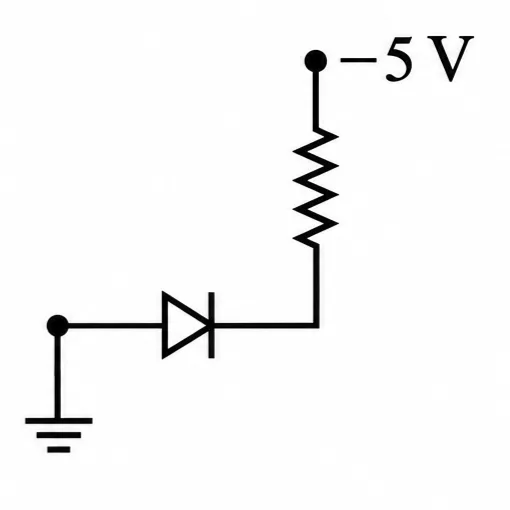

Which of the following circuits is reverse - biased ?

Question

G1 Physics · Accepted Answer

For forward biasing, the P-side of a diode must be at higher potential than the N-side. From the given circuits, circuit (4) is reverse biased. Correct option: D.
