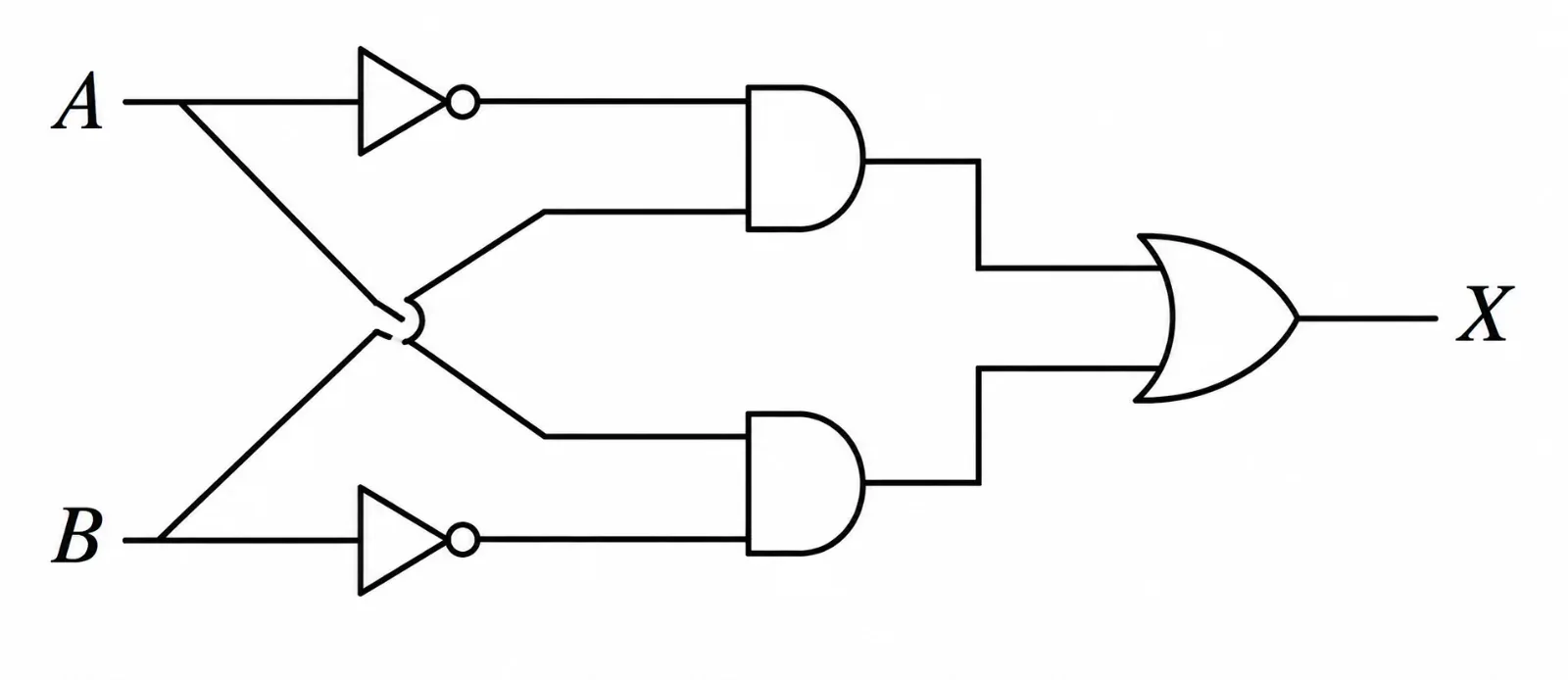

For the given logic gates combination, the correct truth table will be: Image

Options

• Option A

  A B X 0 0 1 0 1 0 1 0 0 1 1 0

• Option B

  A B X 0 0 0 0 1 1 1 0 1 1 1 0

• Option C

  A B X 0 0 1 0 1 0 1 0 1 1 1 0

• Option D

  A B X 0 0 0 0 1 1 1 0 1 1 1 1
