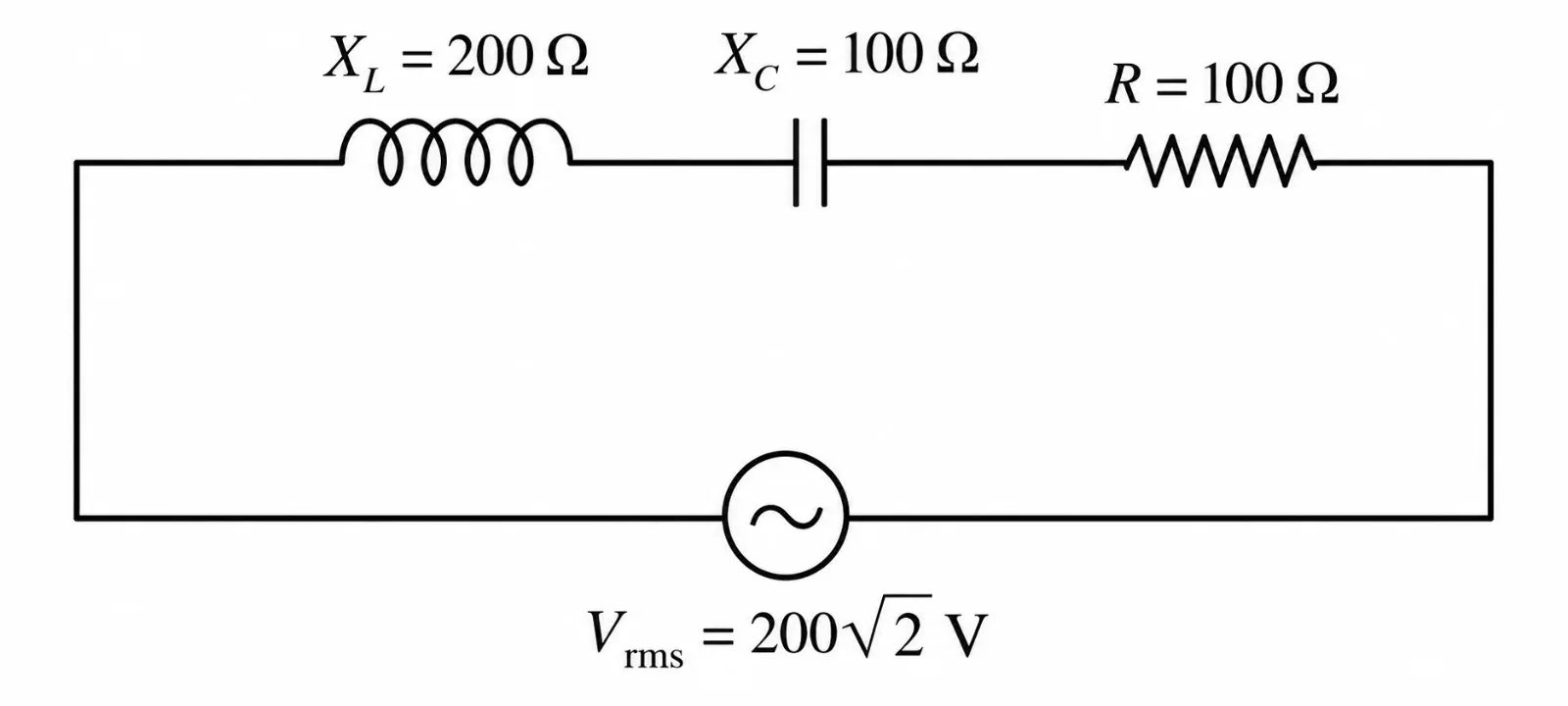

In the given circuit, rms value of current I(rms) through the resistor R is: Image
Options

Question

In the given circuit, rms value of current I(rms) through the resistor R is: Image

G1 Physics · Accepted Answer

For the series RLC circuit, R = 100 Ω, X(L)=200 Ω and X(C)=100 Ω. Hence Z = √[100² + (200−100)²] = 100√2 Ω. With V(rms)=200√2 V, I(rms)=V/Z = 2 A.
