Column-I shows four circular-motion situations and Column-II gives information about the forces. Match each situation with all applicable statements.
Physics · Circular Motion · friction and circular motion
Column-I shows four circular-motion situations and Column-II gives information about the forces. Match each situation with all applicable statements.
List 1

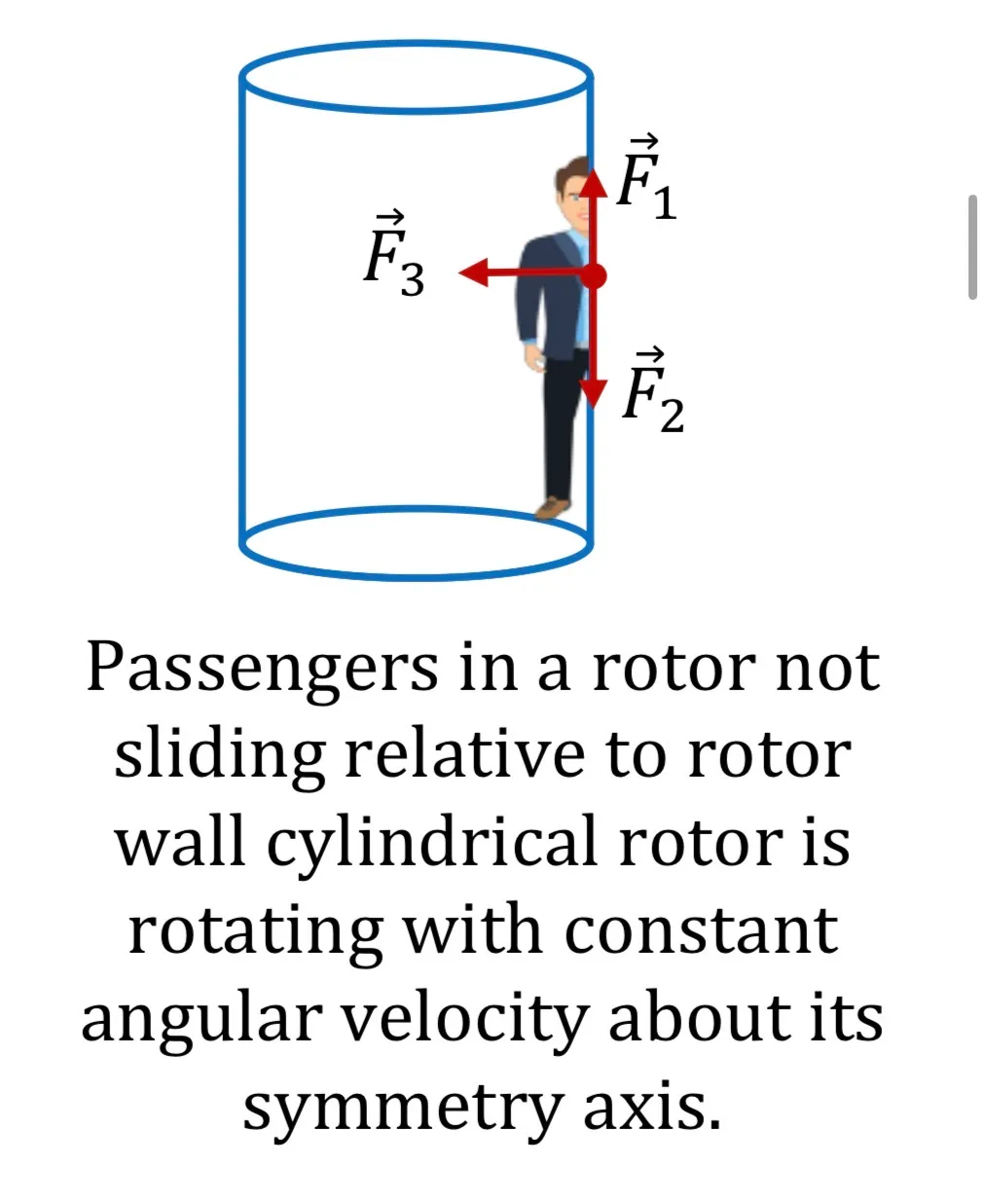

(A)

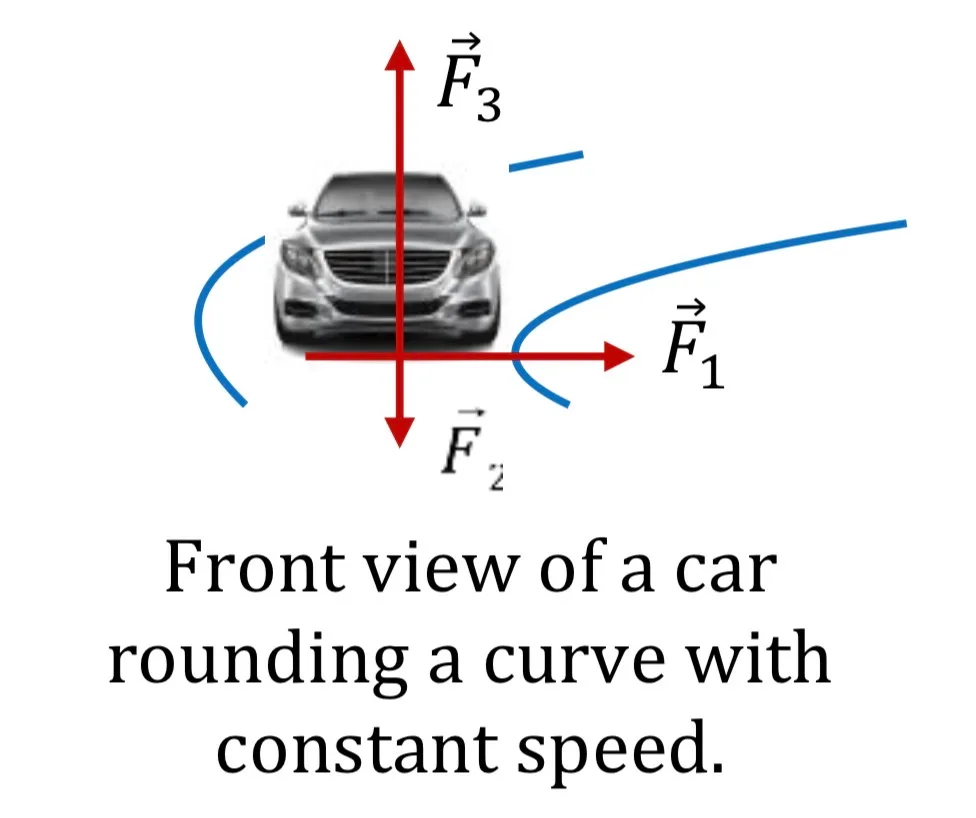

(B)

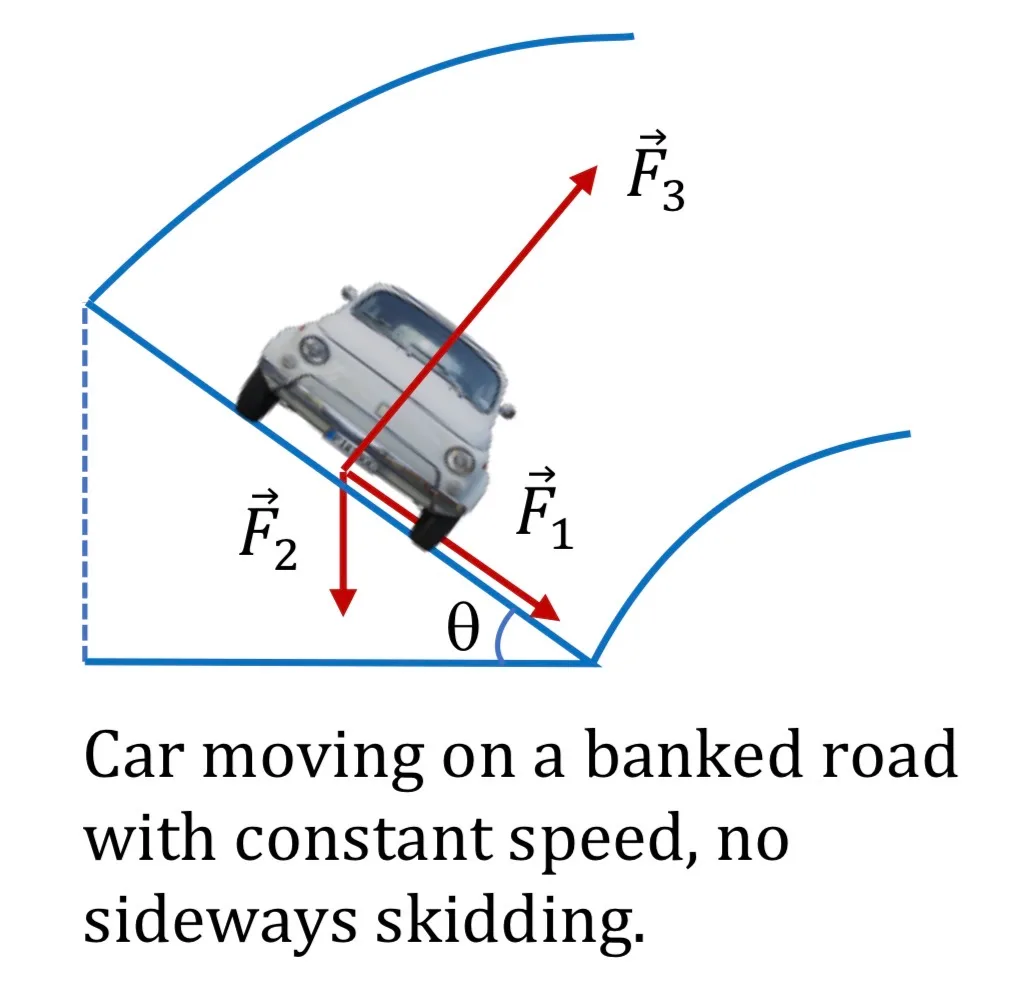

(C)

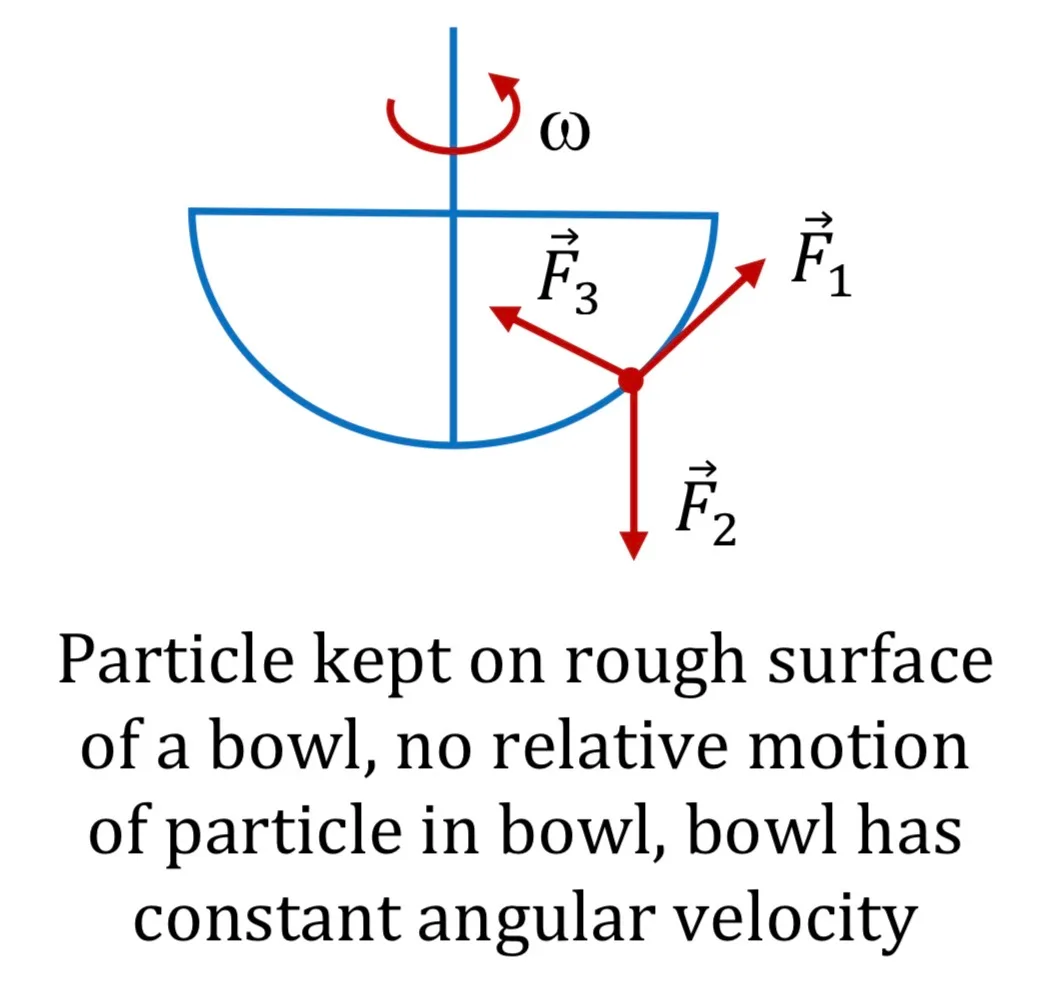

(D)
E. .
List 2
(P) F⃗₁+F⃗₂+F⃗₃ is centripetal force.
(Q) F⃗₁ is static friction.
(R) F⃗₁ can be opposite to the direction shown.
(S) F⃗₁+F⃗₂=0.
(T) F⃗₁+F⃗₂≠0.
Options
